Desktop CNC Router Machine 3018-SE V2 with Transparent Enclosure, 3-Axis Engraving Milling Machine for Wood Acrylic Plastics Metal Resin Carving Arts and crafts DIY Design
(Note：No Laser Head Included)


Description:


This 3018-SE has a transparent enclosure, which enable to watch the engraving process from every side. The new spindle mount not only can fit FoxAlien 5W and 20W modules directly, but also can upgrade to 300W spindle directly.

It’s an entry-level CNC router with enclosure for beginners and hobbyists. It is safer with a case to keep the spindle and dust inside while engraving. Limit switches and emergency stop switch are added to this machine for safety concern.

Optimized assembly method. Main parts are pre-installed in the factory. Wires are labeled clearly for fast assembly. A detailed manual will guide you put the enclosure together.

3018-SE is capable to carve and cut different materials such as plywood, MDF, PCB, acrylic and carve on soft metals surface like aluminum. It’s great for home DIY and small business.

The control board is based on open-sourced grbl software. It supports Windows XP/7/8/10, Linux, Mac OS. It requires knowledge to make G-code. Pls contact us for tutorials if you are new to G-code.
The engraving machine with an aluminum frame and aluminum workbench is corrosion-resistant and strong, having a long service life. The engraving machine with the industrial-grade chip and 80W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient. It is suitable for plastic, wood, acrylic, wood, leather, relief, horn, soft metals such as copper and aluminum.

Details

Cooling Fan: The cooling fan can achieve timely and effective cooling to ensure normal operation and extend the life of the machine.

Bright Blue-violet Light: The bright blue-violet light can achieve precise positioning when you are engraving.

Application

It is suitable for plastic, wood, acrylic, wood, leather, relief, horn, soft metals such as copper and aluminum. It is not suitable for hard metals, jade, or other hard objects.

Specification

Material: Aluminum

Supported Operating System: Windows XP, Win7, Win8, Win10

Power Supply: DC 24V 5.6A

Processing Area: 34*16*2cm/13*6*0.8inch

Motor Type: Stepper Motor

Motor Voltage: 12V

Motor Phase Current: 1.3A

Spindle Motor Voltage: 12V-36V

Spindle Motor Rotation Speed(24V): 7000 rpm

Spindle Motor Rotation Speed(36V): 9000 rpm

Net Weight: 7.6kg/16.8lbs

Gross Weight: 8.2kg/18lbs

Product Size: 40*33*24cm/15.7*12.9*9.4inch

Package Size: 52*32*18cm/20*12.5*7inch

Installation

1. The product needs to be installed by yourself and is easy to install.

2. If you have any questions, please feel free to contact us, we are willing to answer your questions.

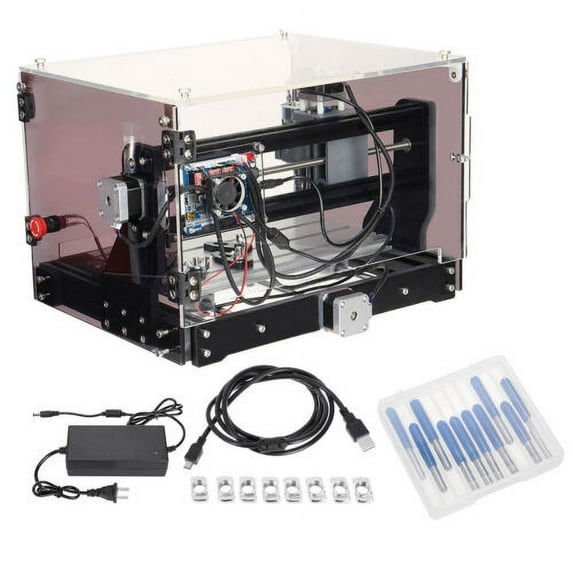

Package Included (Note：No Laser Head Included)

1*Engraving Machine

1*Adapter

8*T-nuts

1 Box*Gouges

3*Power Cords

8 Bag*Screws

6*Installation Tools

1*English Manual

Notes

Please read the manual completely before installation and use. And pay particular attention to the safety instructions included.
It can't be used to carve hard metals, jade, or other hard objects.
Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
Note: Laser Head Is Not Included
