24" 65/72cc 2-Stoke Engine Gasoline Chainsaw Cutting Wood Gas Sawing Crankcase Chain Saw for Forest Harvesting, Cutting Wood, Pruning Branches

Description:

Using traditional axes to cut wood is inefficient and very tiring. And our 2-stroke gasoline-powered chainsaw with 3.4KW/3.9KW strong power and 65cc/72cc displacement is an ideal choice for you to cut wood with less effort, and it is easy to assemble&operate.Having it makes your work easier and simpler.

High efficiency: The 2-stoke engine with 65cc/72cc displacement, #rpm high speed, and 3.4KW/3.9KW high power, the 24" guide chain, and the carburetor with the function of atomizing fuel help this machine keep normal and economical operation, reduce emissions, achieve fast cutting, thus providing excellent performance(about 28.33" cutting diameter).

Application:

It is suitable for forest harvesting, cutting wood, pruning branches, gardening, home woodworking, bamboo sawing, logging, light felling, DIY crafts, ranches, farms, and so on to meet different needs

Starting Method:

1. Fill fuel and chain oil tanks respectively,and tighten the caps securely.

2. Put the switch to "I" position

3. While holding the throttle lever together with the throttle interlock, push in the side throttle lock button and release the throttle lever to hold it at the starting position.

4. Pull out the choke knob to the closed position.

5. While holding the saw unit securely on the ground,pull the starter rope vigorously.

6. When engine has ignited first ,push in the choke knob and pull the starter again to start the engine

7. Allow the engine to warm up with the throttle lever pulled slightly.

How to Assemble the Chainsaw:

Pull the guard towards the front handle to check that the chain brake is not on.

Loosen the nuts and remove the chain cover.

Install the attached spike to the power unit.

Gear the chain to the sprocket and, while fitting the saw chain around the guide bar, mount the guide bar to the power unit. Adjust the position of chain tensioner nut on the chain cover to the lower hole of guide bar.

Specification:

Material: Manganese Steel, Rubber

Power Type: Gasoline

Color: Orange

Process: Quenching

Assembly Required: Yes

Power Source: Gas Powered

Ignition System: Hand Pull Start

Engine Type: Single Cylinder, Air-cooled, 2-Stroke

Oil Mixture: 25:1(Gasoline: Oil)

Chain Length: 60.96cm/24inch

Displacement: 65cc/72cc

Tank Capacity: 0.77L/26oz

Speed: 2700rpm

Chain Fuel Tank Capacity: 0.42L/14oz

Power: 3.4kw/3.9kw

Maximum Cutting Diameter: 58cm/28.33in

Net Weight: 8.5kg/18.74 1bs

Gross Weight: 9kg/19.841bs

Package Size: 56*26*38cm/22.05*10.24*14.96in

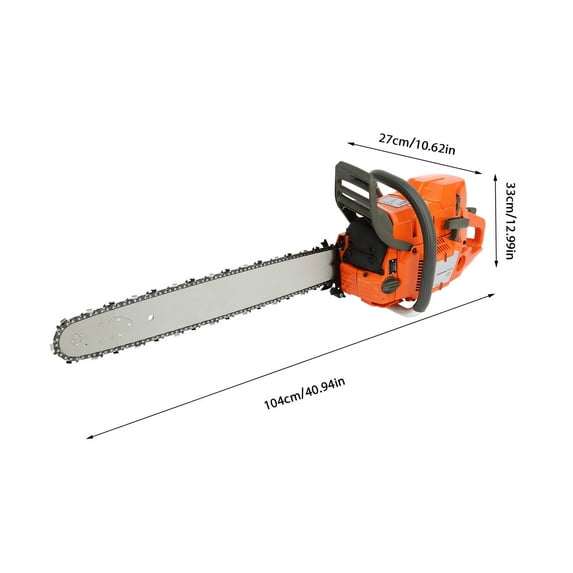

Product Size: 104*27*33cm/40.94*10.62*12.99in

Package Included:

1x Gas Chainsaw

1 Pair x Goggles

1 Pair x Gloves

1x Funnel

1x Guide Bar

1x Guide Bar Cover

1x Chain

1x Mixing Pot

1x English Manual

All Accessories for Assembly

Notes:

Please mix gasoline with oil at the ratio of 25:1. The oil mixing ratio should not be incorrect or biased. The chain oil tank must not be short of oil. Do not use inferior engine oil as a matching oil or chain lubricant.

Please perform necessary maintenance, dust cleaning, oil injection, etc. after each work.

Before using the chain saw, apply engine oil to the air filter to ensure the normal use of the machine.

Please read the English manual completely before installing. And pay particular attention to the safety instructions included.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
