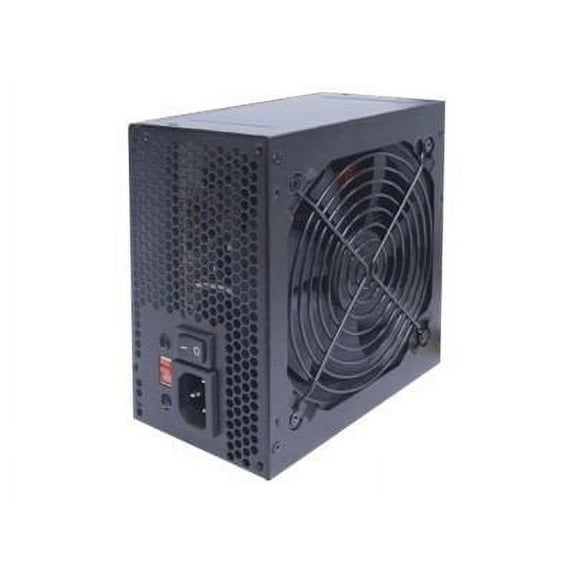

VisionTek - Power supply (internal) - ATX12V - 500-watt

When over-current, over-voltage, or short circuit protection is triggered the power supply will shut itself off. The device will return to normal operation when the fault has been removed and the power switch is reset.

Device Type: Power supply - internal Specification Compliance: ATX12V Service & Support: 2 years warranty Service & Support Details: Limited warranty - 2 years Features: Overcurrent protection, overvoltage protection, undervoltage protection, dual 12V rails, short-circuit protection Compliant Standards: UL, TUV, CB, FCC, RoHS Cooling System: 120 mm fan Frequency Required: 50/60 Hz Output Voltage: +3.3, +5, ±12 V Input Voltage Range: AC 115 - 230 V Power Output Connectors Details:

• 1 x power 24 pin ATX with detachable 4 pin section
• 1 x power 8 pin +12V with detachable 4 pin section
• 4 x 15 pin Serial ATA power
• 2 x 6 pin PCI Express power
• 4 x 4 pin internal power
• 1 x 4 pin mini-power connector

Output Current:

• +3.3V - 20 A
• +5V - 20 A
• +12V1 - 20 A
• +12V2 - 20 A
• -12V - 0.3 A
• +5VSB - 2.5 A

Power Capacity: 500 Watt Manufacturer Warranty: 2 years warranty Device Type: Power supply - internal Output Voltage: +3.3, +5, ±12 V Output connector(s): 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 15 pin Serial ATA power ¦ 2 x 6 pin PCI Express power ¦ 4 x 4 pin internal power ¦ 1 x 4 pin mini-power connector Specification Compliance: ATX12V Cooling System: 120 mm fan Power Capacity: 500 Watt
