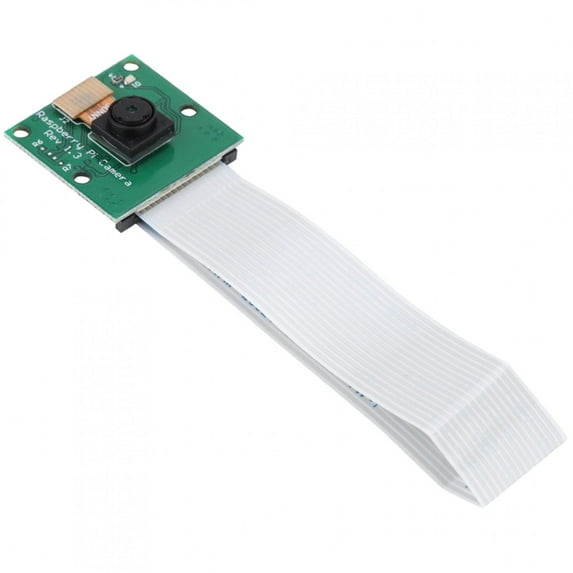

Features: 1. High sensitivity for low illumination applications. 2. Low voltage for embedded applications. 3. Standard SCCB interface, compatible with I2C interface. 4. With RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats. 5. Support VGA, CIF, and various sizes from CIF to 40x30. 6. Adopt VarioPixel subsampling method. 7. Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI. 8. Saturation automatic adjustment (UV adjustment). 9. Edge enhancement automatically adjusts BLOOM. 10. ISP has the function of eliminating noise and dead pixels. 11. Support image scaling. Lens loss compensation. 12. 50/60Hz automatic detection. Automatic noise reduction. Specifications: Photosensitive array: 640X480 IO voltage: 2.5V to 3.0V (internal LDO supplies 1.8V to the core) Power consumption: 60mW/15fpsVGAYUV Sleep: <20μA Temperature operation: -30℃to 70℃ Stable operation: 0℃to 50℃ Output format (8-bit): YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data Optical size: 1/6" Field of view: 25° Maximum conversion rate: 30fps VGA Sensitivity: 1.3V/(Lux-sec) Noise ratio: 46 dB Dynamic range: 52dB letter Browse mode: line-by-line Electronic exposure: 1 line to 510 lines Pixel area: 3.6μm x 3.6μm Dark current: 12 mV/s at 60℃ Size: Approx. 2.5*2.5*0.2cm/0.98*0.98*0.08inch Package List: 1 * Module
