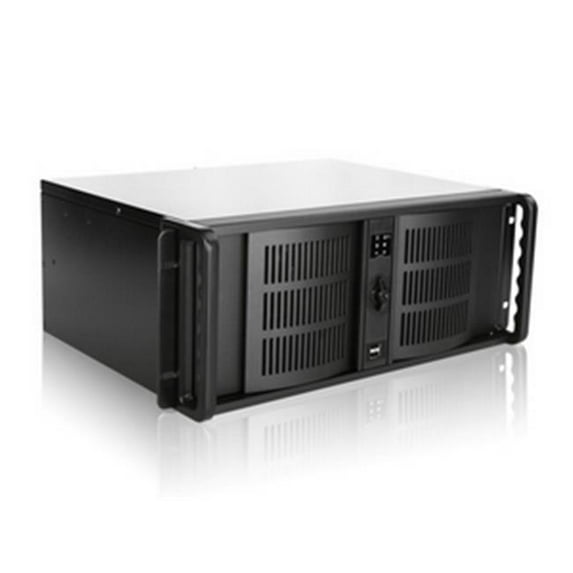

4U Ultra Compact Rackmount Chassis

The ultra compact industrial rackmount chassis with 13.7 in. depth. The full size I/O supports all ATX motherboard and up to seven full-height add-on cards. Two external 3.5 in. drive bays are ideal for BPU-2535 to support up to 4 x 2.5 in. hard drives. Besides, there is one 5.25 in. slim drive bay for slim optical device. One 120mm and 80mm cooling fans in the front and additional one 80mm fans can be mounted in the rear to provide the best ventilation to prevent critical equipment from heat damage. provides server or cluster maximum reliability and performance.

• Standard Drive Bays 3.5 Drives - 2
• Slim 5.25 in. Optical - 1
• Indicators - Power, HDD, Temperature, Fan
• Switches - Power, Reset
• Supported PSU Type - PS3
• Expansion Slots - 7
• Security - Front Bezel Key Lock
• Material of Front Bezel - Aluminium alloy
• Material of Handle - SECC Zinc-Coated Steel
• Material of Main Chassis - 1.2mm SECC Zinc-Coated Steel
• Colour of Front Bezel - Black
• Colour of Main Chassis - Black
• Front Connector - 2x USB 2.0
• Air Filter Removable & Washable
• Motherboard Size - 12 x 9.6 (ATX, microATX)
• Cooling Fan - 2x80mm, 1x120mm
• Optional Fan: 80mm x1
• Dimension - 22 x 21 x 13 in.
