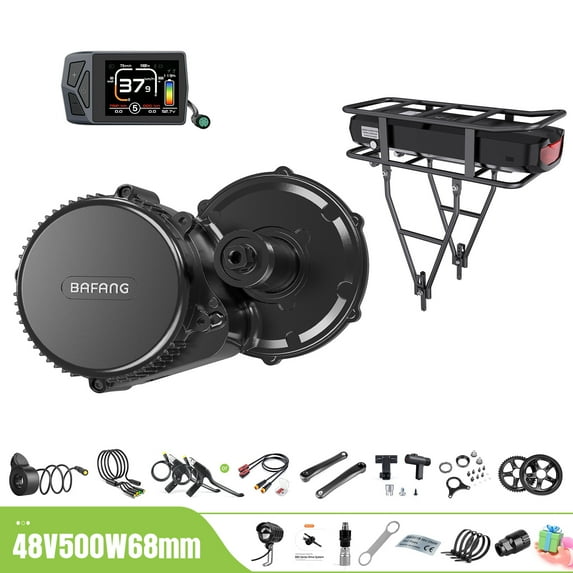

48V500W BAFANG BBS02B Mid Drive Motor Electric Conversion Kit with EKD01 Display 44T Chainwheel For 68-73mm Mountain Ebike Road Bike with 48V17.5AH Rear Rack Battery

48V500W68mm Mid Drive Motor Specification:
Bafang Model: M315 MM G340.500.C
Power: 500W
Voltage: 48V
Controller Current: 18A
Max speed with Pedal Assist: 40km/h
Peak Torque: 100N.m
Efficiency: > 78%
Pedal Assist Sensor Type: Speed Sensor
Gear Reduction Ratio: 1 : 21.9
Operating Temperature Range:-20℃-45℃
Controller Integration: Built into the motor
Bracket Compatibility: 68mm (Bracket length should be between 68-73mm)
Certification:CE/EN 14764/ROHS
Water Resistance: IPX5 rating
Motor Weight: 4.3kg
Communication Protocol: UART

Package Includes:
1 * 48V500W68mm Mid Drive Motor
1 * UART protocol Display (Optional)
1 Pair * Mechanical Brake Levers(Default) - Brake sensors available upon request
1 Pair * Cranks
1 Pair * 44T Chainwheel(Default) -Alternative sizes available upon request: 36T/42T/52T
1 Set * Thumb Throttle
1 Set * Speed Sensor
1 * 4 to 1 Cable
1 * Accessories Kit
1 * User Manual
1* Bottom Bracket Remover
1 * Headlight
1 * Wrench Tool

The motor kits come with battery and charger.
Note: Gear shift sensor is not included. Please contact us if you require one.

FAQ:
Q: How can I tell if this mid-drive motor will fit my bike?
A: This 68mm mid-drive motor is designed for bikes with a bottom bracket width between 68mm (2.68 inches) and 73mm (2.87 inches).
The bracket's inner diameter should be 34-36mm. For 73mm brackets, additional installation accessories will be provided. Please specify if you have a 73mm bracket.

Q: How do I choose between brake levers and brake sensors?
A: If you have hydraulic brakes or prefer to use your own brake sensors, you can opt for brake sensors. They can be directly connected to your brakes for seamless functionality.

Q: Can I install the motor as soon as it arrives?
A: Before installation, please consult the manual and follow the instructions to connect the motor and verify its normal operation. Ensure that no connections are disconnected while the power supply is active.
