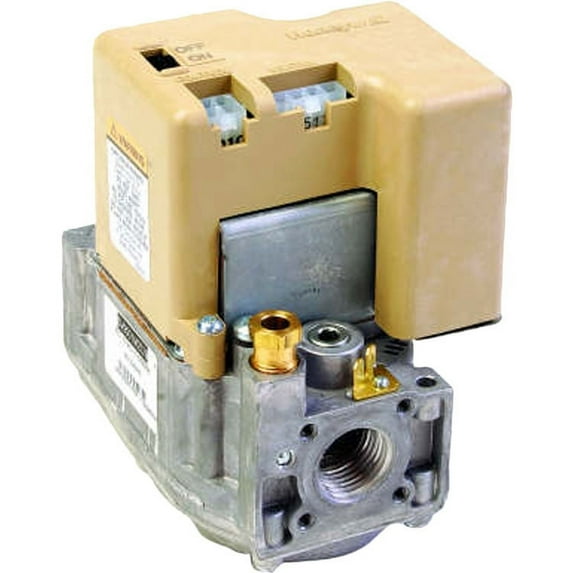

Honeywell SV9602P4832 Intermittent Hot Surface Pilot Ignition SmartValve Control

Price is for each.

Manufacturer Part Number: SV9602P4832

HONSV9602P4832 24v 3/4 X 3/4 Step Opening Intermittent Hot Surface Pilot Ignition Smart Valve For LP Gas Only With 30 Second Prepurge 2.5 Kpa

Part Description:

• Gas Control Valve
• Type Step Opening, Straight-Through
• Nominal Size 3/4 Inch
• End Connection Threaded x Threaded
• End to End Distance 3.2 Inch
• Input Supply Rating 24 Volt AC at 50/60 Hertz
• Temperature Rating -40 to 175 Deg F
• Pressure Rating 1/2 PSI
• Inclusions/Features (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Extension Harness
• Application Gas Fired Appliance, Residential Combustion Control, Residential Rooftop Furnace, Residential Boiler, Unit/Infrared/Space Heater, Commercial Cooking Unit
• Applicable Standard CSA
• Overall Dimension 4.1 Inch Length x 4.9 Inch Height
• Ignition Type Intermittent Hot Surface Pilot
• Ignition Sequence Intermittent Pilot
• Flame Failure Response Time 1.6 Second at 3 Microamp
• Ignition Trial Time 90 Second
• Prepurge Time 30 Second
• Capacity 30000 to 415000 BTU/Hour
• Pressure Tapping 1/8 Inch Threaded
• Pressure Regulator Set Point 10 Inch WC
• Mounting 0 to 90 Degree Vertical Installation

Features / Benefits

• Suitable for a Wide Range of Gas-Fired Appliances Including Residential Furnaces, Roof-Top Furnaces, Residential Boilers, Unit Heaters, Infrared Heaters, Space Heaters and Commercial Cooking Units
• Ignition Sequence Includes Timed Trial for Ignition
