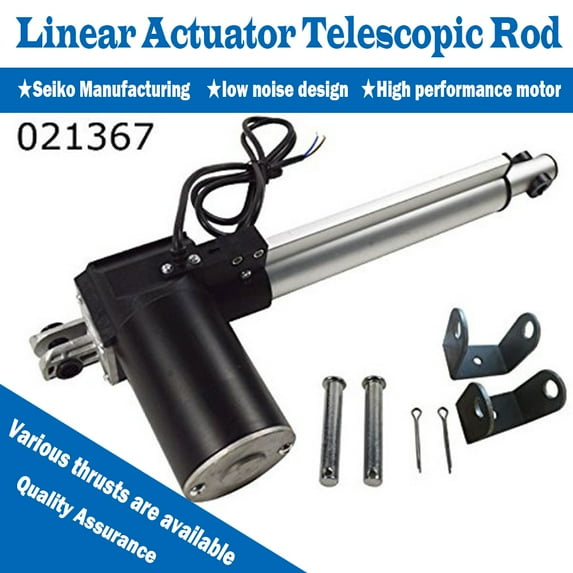

TECHTONGDA Linear Actuator 12V DC Electric Motor 1320lbs(6000N) Heavy Duty Actuators Controller Stroke 13.78"(350mm)

✔Description:
Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.
With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.
Please Note：Because of many models, different telescopic length. So actual item may look different from the one shown on the webpage. The web page shows: S = 350MM (13.78Inch).


✔Specification：
Input Voltage :12V DC
Stroke Length :S = 350mm (13.78Inch)
Min Installation Dimension:L=S+175mm
Max Installation Dimension:A= 2S+175mm
Max Push Load :6000N (1320lbs)
Max Pull Load :4500N (990lbs)
Speed :5~7mm/s
Operating frequency :Max 25%
Duty Cycle :25%
Protective Class :IP54
Operation Temperature:-26~85℃
Control Mode :Positive & Negative
Package size: 24*6.7*4.3inch (61*17*11cm)
Gross weight：6.93lbs (3.15kg)


✔Features：
* 100% Brand New and high quality
* Heavy Duty and Long Lasting Motor
* High quality aluminum alloy material
* High performance motor
* The low noise design
* Multiple Purpose Applications Linear Actuator
* Commonly Used In Automotive, Medical Devices and Engineering Industry.
* Reasonable design of machine structure, simple and convenient to use.


✔Item included：021367
TECHTONGDA Linear Actuator 12V DC Electric Motor 1320lbs(6000N) Heavy Duty Actuators Controller Stroke 13.78"(350mm)
