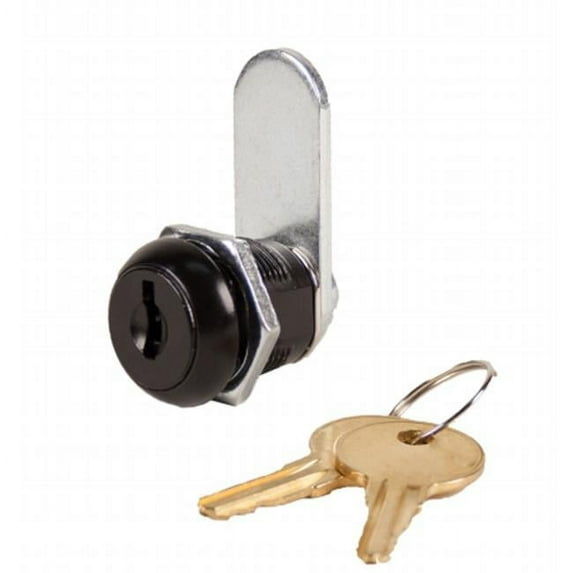

Black Disc Tumbler Cam Lock, 5/8" Cylinder, Keyed Alike - Pack of 6

Disc Tumbler Cam Lock- 5/8" Cylinder Length
The FJM Security tumbler cam lock has a 5/8" cylinder length and can accommodate material thickness up to 3/8" thick. The 1-1/4" cam can be installed at the 12,3,6 and 9 o'clock positions with a 90 degree turn. The stop cam is reversible so that the lock key can either be turned to the right or left to open. The cylinder diameter is standard at ¾". The small cam lock is constructed of zinc alloy and has a black finish. The hex nut, cam, screw and keys are all steel with chrome plating.

Secure Keyway
The disc tumbler cam lock is keyed alike; each key fits every lock. It is also non-key retaining- The key can be removed in the locked and unlocked positions.

Included in the Box

• Disc tumbler cam lock
• Two keys
• Cylinder nut
• 1-1/4" cam and cam screw

Applications

• Furniture
• Electronics Enclosures
• HVAC
• Industrial Enclosures
• Industrial Equipment
• Medical Cabinets and Equipment
• Recreation Vehicles
• Transportation
• Vending POS
• Replaces any current cam lock application
