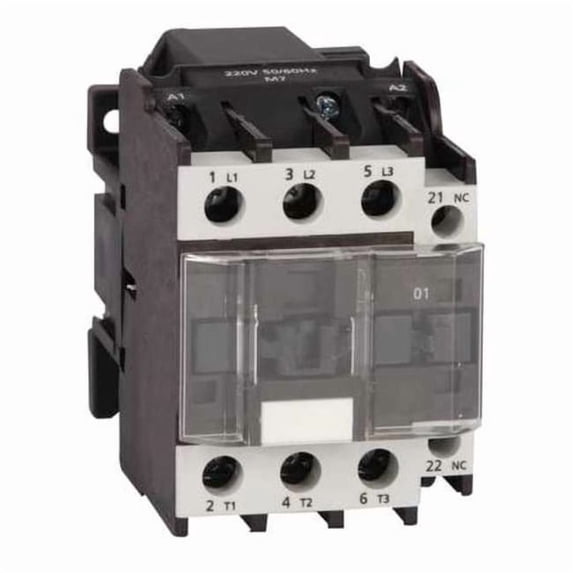

Dayton IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw 6EAW0

The DAYTON IEC Magnetic Contactor is an IEC-standard, electrically operated switch rated for switching within specified electrical parameters. It is a 3-pole device with a 240 V AC coil, operates with non-reversing functionality, and screw terminals, featuring one normally open auxiliary contact. - Action: operates with non-reversing functionality - Poles: 3 - Coil Voltage: 240 V AC - Auxiliary Contacts: 1 NO (Auxiliary Contact Form: 1NO) - Embedded Surge Suppressor: No - Frequency: rated for operation at 50/60 Hz frequencies - Full Load Amps: rated for continuous operation at specified current ratings under typical load conditions (Inductive 25 A / Resistive 40 A) - HP Ratings: rated for use with motors up to the specified horsepower ratings at corresponding voltages (120 V: 2 hp; 230 V: 3 hp; 240 V: 3 hp; 208 V: 5 hp; 240 V: 7.5 hp; 480 V: 15 hp; 575 V: 20 hp) - Dimensions: 2.2 in W × 2.2 in H × 3.75 in D - Standards: CSA, UL Listed - Terminal Connection Type: Screw - Reversing: No WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Nickel (Metallic)
