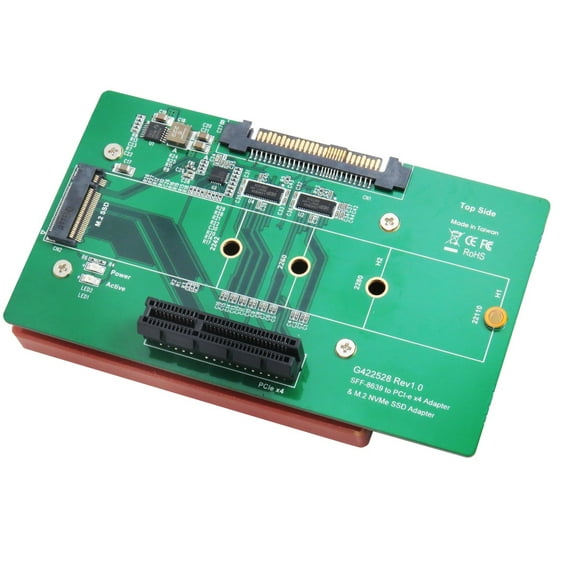

U.2 (SFF-8639) to M.2 M-Key NVME SSD and PCIe X4 Slot

U.2 (SFF-8639) to M.2 M-Key NVME SSD and PCIe X4 Slot

Features :

• NVME to U.2 (SFF-8639) converter
• PCIe to U.2 (SFF-8639 converter
• Built in M.2 M-key female connetcor
• Built in SFF-8639 connector pin out defined by PCIe
• Built in PCIe X4 slot connector
• PWM synchronous buck converter Power IC
• • 3A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
• LED 2 Green LED on indicates M.2 NVME SSD power ready.
• LED 1 Red LED Blinking indicates M.2 SSD active status

Specifications :

• Compliant with NVME Express 1.1
• Supports PCI Express Card Electro-Mechanical (CEM) Specification REV 2.0
• Supports SSD Form Factor Version 1 a
• Compliant with PCI Express M.2 Specification 1.0
• Compliant with SFF-8639 Specification Rev 2.0

M.2 SSD Form Factor Support :

• Supports M.2 Socket SSD type 2230, type 2242, type 2260, type 2280, type 22110

Micro SATA Cables PN # U2-1329-M2
