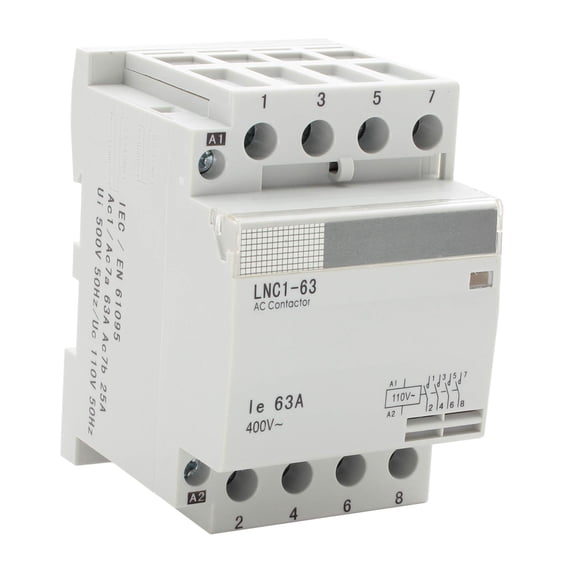

Hero image 0 of Shopcorp 63 Amp 4 Pole Normally Open IEC 400V Contactor (Silent Operation) – 110/120VAC Coil, Motor Load 40A and Lighting Load 63A with Mounting Base for DIN Rail, 0 of 7
Shopcorp 63 Amp 4 Pole Normally Open IEC 400V Contactor (Silent Operation) – 110/120VAC Coil, Motor Load 40A and Lighting Load 63A with Mounting Base for DIN Rail
(No ratings yet)
Key item features
- INDUSTRIAL QUALITY COMPONENTS – 63Amp 4 Pole Normally Open (NO) General Purpose Contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation
- CONTACTOR APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil
- FULL AMP LOAD – Inductive/Motor Load: 40Amp. Resistive/Incandescent Load: 63Amp. DC Load: 30Amp @ 24VDC. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp loads. Power Lug Terminal Capacity AWG # 4
- COIL VOLTAGE AND LOAD – Contactor IEC 400V. Coil Voltage 110/120VAC, 50 Hz. Coil load Inrush 52VA, Sealed 10VA
- OTHER CONTACTOR DETAILS – IEC AC Rate: AC-1; 10 kW, AC-3; 8 kW. Electric e strength: 4 kV. Operating Temperature -40…+70 °C (-40…+158 °F). Dimensions (approx.): 54 x 85 x 66 mm / 2.1'' x 3.3'' x 2.6'' (Width x Height x Depth)
Specs
- Volts120 V
- Number of poles4
- Motor contactor typeNormally Open
- BrandShopcorp
- Dimensions2.60 x 2.10 x 3.30 Inches
- Weight0.88 lbs
Price when purchased online
Not Available
How do you want your item?
Not available
Similar items you might like
Based on what customers bought
Honeywell DPL3040A5003 Deluxe Power Pro Contactor. Poles: 3. Coil Voltage: 24v. Contact Rating: 40amps. 50/60 Hz. Terminal connection: Box Lug. Compliant with A2L refrigerants. Replaces DP3040A5003 $73.74
$7374current price $73.74Honeywell DPL3040A5003 Deluxe Power Pro Contactor. Poles: 3. Coil Voltage: 24v. Contact Rating: 40amps. 50/60 Hz. Terminal connection: Box Lug. Compliant with A2L refrigerants. Replaces DP3040A5003
MPXBM DC66P 12V 24V 48V Motor Reversing Contactor Winch Solenoid Relay General ZJWTP50DE $75.10
3 optionsAvailable in additional 3 options$7510current price $75.10MPXBM DC66P 12V 24V 48V Motor Reversing Contactor Winch Solenoid Relay General ZJWTP50DE
CJX2-0910 1NO CJX2-0901 1NC Din Rail Magnetic AC Contactor 9A Coil Voltage 380 220 110 36V 24V LC1-D ,Replace Most $44.26
10 optionsAvailable in additional 10 options$4426current price $44.26CJX2-0910 1NO CJX2-0901 1NC Din Rail Magnetic AC Contactor 9A Coil Voltage 380 220 110 36V 24V LC1-D ,Replace Most
Honeywell DPL2030D5002 Deluxe Power Pro Contactor. Poles: 2. Coil Voltage: 277v. Contact Rating: 30amps. 50/60 Hz. Terminal connection: Box Lug. Compliant with A2L refrigerants. Replaces DP2030D5002 $45.05
$4505current price $45.05Honeywell DPL2030D5002 Deluxe Power Pro Contactor. Poles: 2. Coil Voltage: 277v. Contact Rating: 30amps. 50/60 Hz. Terminal connection: Box Lug. Compliant with A2L refrigerants. Replaces DP2030D5002
Honeywell DPL1040A5005 Deluxe Power Pro Contactor. Poles: 1. Coil Voltage: 24v. Contact Rating: 40amps. 50/60 Hz. Terminal connection: Box Lug. Compliant with A2L refrigerants. Replaces DP1040A5005 $44.78
$4478current price $44.78Honeywell DPL1040A5005 Deluxe Power Pro Contactor. Poles: 1. Coil Voltage: 24v. Contact Rating: 40amps. 50/60 Hz. Terminal connection: Box Lug. Compliant with A2L refrigerants. Replaces DP1040A5005
NXC-40 220V 710010100000273 3P 40A | 220VAC NXC AC contactor (AC coil) $58.50
$5850current price $58.50NXC-40 220V 710010100000273 3P 40A | 220VAC NXC AC contactor (AC coil)
Replacement for Single Pole / 1 Pole 30 Amp 24V Coil Condenser Contactor 42-42728-02 by $34.97
$3497current price $34.97Replacement for Single Pole / 1 Pole 30 Amp 24V Coil Condenser Contactor 42-42728-02 by
AC contactor 12A 3P 1NO/1NC Rail installation lc1d CJX2- 1210 1 normally open contact / CJX2- 1201 1 normally closed contact $50.61
10 optionsAvailable in additional 10 options$5061current price $50.61AC contactor 12A 3P 1NO/1NC Rail installation lc1d CJX2- 1210 1 normally open contact / CJX2- 1201 1 normally closed contact
Relay & Control DPC-40A2P120 Definite Purpose Contactor, 40 amp, 2 Pole 120 V $58.73
$5873current price $58.73Relay & Control DPC-40A2P120 Definite Purpose Contactor, 40 amp, 2 Pole 120 V
Relay & Control DPC-40A2P24 Definite Purpose Contactor, 40 amp - 2 Pole 24V $48.88
$4888current price $48.88Relay & Control DPC-40A2P24 Definite Purpose Contactor, 40 amp - 2 Pole 24V
Schneider Motor Starter Assemble Contactor 18A Coil 120VAC Thermal Relay 12-18A $57.50
$5750current price $57.50Schneider Motor Starter Assemble Contactor 18A Coil 120VAC Thermal Relay 12-18A
CJX2 Ac Contactor 12A Electric 3 Pole For Unit 3 Phase 3P NO Magnetic 380 220 110 36V 24V Normally Closed Contactors ,Replace Most $36.70
12 optionsAvailable in additional 12 options$3670current price $36.70CJX2 Ac Contactor 12A Electric 3 Pole For Unit 3 Phase 3P NO Magnetic 380 220 110 36V 24V Normally Closed Contactors ,Replace Most
CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 380V 220V 110V 36V 24V 50/60Hz Din Rail Mounted 3P 1NO Normal Open $47.78
5 optionsAvailable in additional 5 options$4778current price $47.78CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 380V 220V 110V 36V 24V 50/60Hz Din Rail Mounted 3P 1NO Normal Open
Pack of 1, Abb Esb63-40-84, Installation Contactor, 4 Pole, 110 Vac, 4 No, Din Rail Mount $70.00
$7000current price $70.00Pack of 1, Abb Esb63-40-84, Installation Contactor, 4 Pole, 110 Vac, 4 No, Din Rail Mount
LC1D 0910 LC1D0910 AC Contactor LC1D 0910 Magnetic Ac Electric 3 Pole Contactor For Unit 3 Phase Closed Contactor ,Replace Most $59.93
4 optionsAvailable in additional 4 options$5993current price $59.93LC1D 0910 LC1D0910 AC Contactor LC1D 0910 Magnetic Ac Electric 3 Pole Contactor For Unit 3 Phase Closed Contactor ,Replace Most
Relay & Control DPC-402120 Definite Purpose Contactor, 40 amp, 2 Pole 120 V $31.48
$3148current price $31.48Relay & Control DPC-402120 Definite Purpose Contactor, 40 amp, 2 Pole 120 V
ABB, DP40C2P-1, 2 Pole, 40 Amps, 120VAC Coil, Definite Purpose Contactor $59.74
$5974current price $59.74ABB, DP40C2P-1, 2 Pole, 40 Amps, 120VAC Coil, Definite Purpose Contactor
SCHNEIDER CONTACTOR LC1D40G7 C Contactor, 40 A, DIN Rail, 600 VAC, 3PST-NO, 3 Pole, 30 hp $111.85
$11185current price $111.85SCHNEIDER CONTACTOR LC1D40G7 C Contactor, 40 A, DIN Rail, 600 VAC, 3PST-NO, 3 Pole, 30 hp
LC2K CJX2K0901N 0910N reversing contactor mechanical interlocking contactor Mechanical contactor AC220V 110V 36V 24V 380V $52.20
31 optionsAvailable in additional 31 options$5220current price $52.20LC2K CJX2K0901N 0910N reversing contactor mechanical interlocking contactor Mechanical contactor AC220V 110V 36V 24V 380V
LC1D09M7C Contactor With Coil 220VAC 50/60Hz $37.96
$3796current price $37.96LC1D09M7C Contactor With Coil 220VAC 50/60Hz
About this item
Product details
Shopcorp 63 Amp 4 Pole Normally Open IEC 400V Contactor (Silent Operation) – 110/120VAC Coil, Motor Load 40A and Lighting Load 63A with Mounting Base for DIN Rail
63 Amp 4 Pole Normally Open Contactor for home or industrial uses. With applications in
lighting, motor and switching.
Technical Specifications:
– Contactor IEC 400V
– Contactor Type NO
– Inductive Load: 40A
– Resistive Load: 63A
– DC Load: 30A, @ 24VDC
– Power status indicator
– Number of Poles 4
– Coil Volts: 110/120VAC, 50 Hz
– Coil Load: Inrush 52VA, Sealed 10VA
– IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW
– Electric e strength: 4 kV
– Operating Temperature: -40…+70 °C (-40…+158 °F)
– 1 HP @ 1 Phase - 120V
– 2 HP @ 1 Phase - 230V
– 5 HP @ 3 Phase - 208V
– 5 HP @ 3 Phase - 230V
– 10HP @ 3 Phase - 480V
– Weight: 0.88 lb (0.42 kg)
– Width: 2.1" (54 mm)
– Height: 3.3" (85 mm)
– Depth: 2.6" (66 mm)
– CE approved 61095, UL pending
– Base or DIN 35mm mount
Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm
Compliance:
CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1
63 Amp 4 Pole Normally Open Contactor for home or industrial uses. With applications in
lighting, motor and switching.
Technical Specifications:
– Contactor IEC 400V
– Contactor Type NO
– Inductive Load: 40A
– Resistive Load: 63A
– DC Load: 30A, @ 24VDC
– Power status indicator
– Number of Poles 4
– Coil Volts: 110/120VAC, 50 Hz
– Coil Load: Inrush 52VA, Sealed 10VA
– IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW
– Electric e strength: 4 kV
– Operating Temperature: -40…+70 °C (-40…+158 °F)
– 1 HP @ 1 Phase - 120V
– 2 HP @ 1 Phase - 230V
– 5 HP @ 3 Phase - 208V
– 5 HP @ 3 Phase - 230V
– 10HP @ 3 Phase - 480V
– Weight: 0.88 lb (0.42 kg)
– Width: 2.1" (54 mm)
– Height: 3.3" (85 mm)
– Depth: 2.6" (66 mm)
– CE approved 61095, UL pending
– Base or DIN 35mm mount
Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm
Compliance:
CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1
- INDUSTRIAL QUALITY COMPONENTS – 63Amp 4 Pole Normally Open (NO) General Purpose Contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation
- CONTACTOR APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil
- FULL AMP LOAD – Inductive/Motor Load: 40Amp. Resistive/Incandescent Load: 63Amp. DC Load: 30Amp @ 24VDC. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp loads. Power Lug Terminal Capacity AWG # 4
- COIL VOLTAGE AND LOAD – Contactor IEC 400V. Coil Voltage 110/120VAC, 50 Hz. Coil load Inrush 52VA, Sealed 10VA
- OTHER CONTACTOR DETAILS – IEC AC Rate: AC-1; 10 kW, AC-3; 8 kW. Electric e strength: 4 kV. Operating Temperature -40…+70 °C (-40…+158 °F). Dimensions (approx.): 54 x 85 x 66 mm / 2.1'' x 3.3'' x 2.6'' (Width x Height x Depth)
