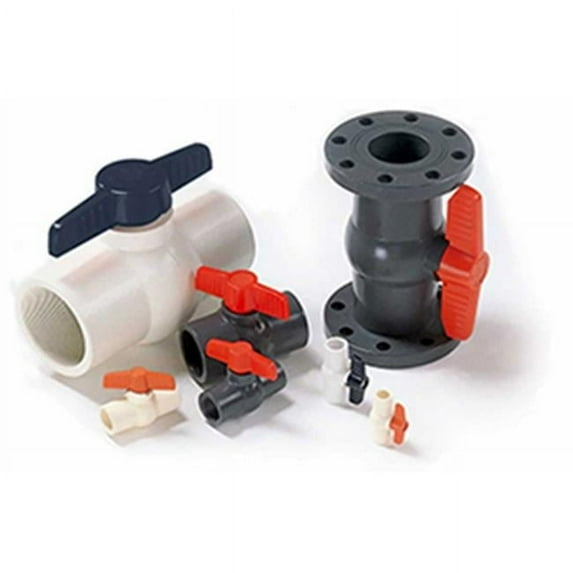

American Valve P200 3 3 in. PVC Ball Valve - International Polymer Solutions Schedule 40

American Valve is dedicated to providing dependable products and services of the highest standards. The valve brand has represented innovative research and products built with confidence and quality. Our products are energy saving benefits as Zero Leakage and Build-up Resistance. Our valve is designed and monitored to minimize the impact of harmful chemicals on the health and safety of people and the environment.

• PVC Ball Valve - International Polymer Solutions Schedule 40
• Low cost & convenient operation
• Severe shock, loads and stress are absorbed by the valve body, not the ball and seat, minimizing the chance of uneven wear and leakage
• Excellent flow characteristics
• Suitable for hot water systems (CPVC)
• Manufactured in compliance with ASTM F1970
• Not recommended for service or test with compressed air gases

• Body Materials: PVC, CPVC
• Sizes: 0.5 - 4 inch
• End Types: Threaded, Socket or CTS
• Seat: EPDM or PTFE
• O-Ring: EPDM or FPM
• Test Pressure: 225 PSI
• Work Pressure: 150 PSI
• Pressure Rating: 150 PSI at 73 degree F
• Maximum Temperature: 140 degree F (PVC) & 180 degree F (CPVC)
• Size Ød1: 3.52
• Size Ød2: 3.49
• Size ØD: 5.24
• Size ØD1: 4.17
• Size: Ød 3.03
• Size: H 7.48
• Size: H1 4.88
• Size I: 1.88
• Size L: 9.02
• Size L1: 8.82
• Size Thd. /in. NPT: 8
• Size Cv: 480
• Size: 3 in&#- SKU: AMVLV593
