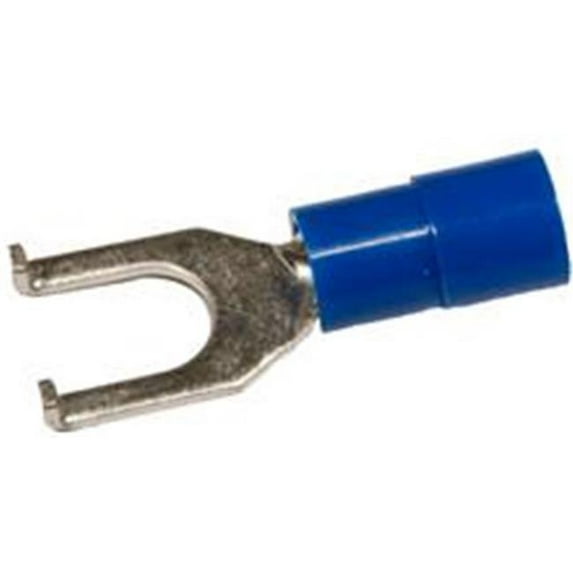

Nylon Insulated Flange Spade Terminals - 16-14 Wire, No. 8 Stud, Pack Of 100

Nylon Insulated Flange Spade Terminals - 16-14 Wire, #8 Stud - Our Nylon Insulated Flange Terminals combine quality and economy.

• Flanged Fork Spade terminals are Nylon Insulated.
• Color Coded insulation for easy identification.
• Manufactured from high strength electrolytic copper alloy.
• Electro-tin plated for corrosion resistance.
• Easy entry expanded insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief.
• Wire range stamped on the surface for easy interpretation.
• Terminal barrel has brazed seam.
• Serrated barrel provides excellent electrical contact &resistance to pull-out forces.
• Flanged configuration of Tang ensures a positive lock to terminal base increasing pull-out force resistance.
• 221°F (105°C) 600 Volts Max.
• Maximum electric current - 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp.

• Color - Blue.
• Wire Size - 16-14.
• Stud Size - no.8.
• Bag Qty - 100.
• Pack of - 100.
• Item Weight - 0.24 lbs.
