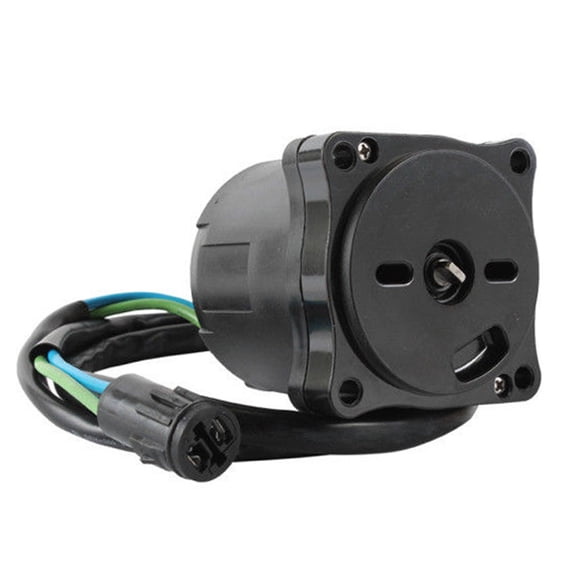

New Reversible Tilt Trim Motor Fits Honda Marine Bf250 36120Zy3013 Trm0104 6234

(No ratings yet)

Key item features

Rareelectrical Compatible With Honda
Honda Bf175 175Hp V6 4-Stroke Outboard: • Bf175a3 175Hp V6 4-Stroke Vtec (2003-2007) • Bf175a6 175Hp V6 4-Stroke Vtec (2003-2007) • Bf175ak1 175Hp V6 4-Stroke Vtec (2008-2014) • Bf175ak2 175Hp V6 4-Stroke Vtec (2012-2018) Honda Bf200 200Hp V6 4-Stroke Outboard (2002-2018): • Bf200a2 200Hp V6 4-Stroke Vtec (2002-2007) • Bf200a3 200Hp V6 4-Stroke Vtec (2002-2007) • Bf200a6 200Hp V6 4-Stroke Vtec (2002-2007) • Bf200ak2 200Hp V6 4-Stroke Vtec (2008-2018) Honda Bf225 225Hp V6 4-Stroke Outboard (2002-2018): • Bf225a2 225Hp V6 4-Stroke Vtec (2002-2007) • Bf225a3 225Hp V6 4-Stroke Vtec (2002-2007) • Bf225a6 225Hp V6 4-Stroke Vtec (2002-2007) • Bf225ak1 225Hp V6 4-Stroke Vtec (2008-2014) • Bf225ak2 225Hp V6 4-Stroke Vtec (2012-2018)
Oem Part Numbers: • Honda: 36120-Zy3-013 / 36120Zy3013 • Honda: 36120-Zy3-023 / 36120Zy3023 • Honda: 36120-Zx2-013 / 36120Zx2013 • Arco Marine: 6234 • Sierra: 18-6742 Specifications: • Type: Power Tilt Trim Motor • Voltage: 12V Dc • Rotation: Reversible • Connection: 2-Wire, 39" Cord Length, Round Plug Connector • Shaft: 2.3Mm Keyed D-Shaft • Housing Od: 3.091" (78.5Mm) • Shaft Od: 0.315" (8Mm) • Overall Length: 4.429" (112.5Mm) • Mounting Ring Od: 71Mm • Mounting Holes: 66Mm On Center • Weight: 3.01 Lbs (1.37 Kg) • Condition: New Honda Outboard Applications: • Bf175 175Hp V6 4-Stroke Vtec — A3, A6, Ak1, Ak2 (2003-2018) • Bf200 200Hp V6 4-Stroke Vtec — A2, A3, A6, Ak2 (2002-2018) • Bf225 225Hp V6 4-Stroke Vtec — A2, A3, A6, Ak1, Ak2 (2002-2018)
Source: Aftermarket
One Year Manufacturer's Warranty.

Specs

Boat motor type
Outboard Boat Motors
Brand
Rareelectrical
Engine displacement
0 cc
Fuel system
See Description.

Current price is $128.24$35.62/lb

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Tue, Apr 21

Sold and shipped by Rareelectrical

4.434380776340111 stars out of 5, based on 541 seller reviews(4.4)

Report an issue with this seller

Free 30-day returns

About this item

Product details

HONDA BF225 225HP V6 4-STROKE OUTBOARD (2002-2018):
• BF225A2 225HP V6 4-Stroke VTEC (2002-2007)
• BF225A3 225HP V6 4-Stroke VTEC (2002-2007)
• BF225A6 225HP V6 4-Stroke VTEC (2002-2007)
• BF225AK1 225HP V6 4-Stroke VTEC (2008-2014)
• BF225AK2 225HP V6 4-Stroke VTEC (2012-2018)

HONDA BF200 200HP V6 4-STROKE OUTBOARD (2002-2018):
• BF200A2/A3/A6 200HP V6 VTEC (2002-2007)
• BF200AK2 200HP V6 VTEC (2008-2018)

HONDA BF175 175HP V6 4-STROKE OUTBOARD:
• BF175A3/A6 (2003-2007) / BF175AK1/AK2 (2008-2018)

OEM PART NUMBERS:
• Honda: 36120-ZY3-013 / 36120ZY3013
• Honda: 36120-ZY3-023 / 36120ZY3023
• Honda: 36120-ZX2-013 / 36120ZX2013
• Arco Marine: 6234 / Sierra: 18-6742

SPECIFICATIONS:
• 12V DC / Reversible / 2-Wire / 39" Cord / Round Plug Connector
• Keyed D-Shaft (2.3mm) / Housing OD: 3.091" / Shaft OD: 8mm
• Overall Length: 4.429" / Mtg Ring: 71mm / Holes: 66mm OC

HONDA BF225 V6 4-STROKE - Power Tilt Trim Motor:
New power tilt trim motor for Honda BF225 225HP V6 VTEC 4-stroke outboard engines manufactured 2002-2018. Also fits Honda BF200 200HP and BF175 175HP V6 outboards. Features keyed D-shaft coupling for hydraulic pump, 39-inch cord with round plug connector, and reversible 12V DC motor. Direct OEM replacement.

⚠️ IMPORTANT: Verify OEM part number before ordering to ensure proper fitment.

Rareelectrical Compatible With Honda
Honda Bf175 175Hp V6 4-Stroke Outboard: • Bf175a3 175Hp V6 4-Stroke Vtec (2003-2007) • Bf175a6 175Hp V6 4-Stroke Vtec (2003-2007) • Bf175ak1 175Hp V6 4-Stroke Vtec (2008-2014) • Bf175ak2 175Hp V6 4-Stroke Vtec (2012-2018) Honda Bf200 200Hp V6 4-Stroke Outboard (2002-2018): • Bf200a2 200Hp V6 4-Stroke Vtec (2002-2007) • Bf200a3 200Hp V6 4-Stroke Vtec (2002-2007) • Bf200a6 200Hp V6 4-Stroke Vtec (2002-2007) • Bf200ak2 200Hp V6 4-Stroke Vtec (2008-2018) Honda Bf225 225Hp V6 4-Stroke Outboard (2002-2018): • Bf225a2 225Hp V6 4-Stroke Vtec (2002-2007) • Bf225a3 225Hp V6 4-Stroke Vtec (2002-2007) • Bf225a6 225Hp V6 4-Stroke Vtec (2002-2007) • Bf225ak1 225Hp V6 4-Stroke Vtec (2008-2014) • Bf225ak2 225Hp V6 4-Stroke Vtec (2012-2018)
Oem Part Numbers: • Honda: 36120-Zy3-013 / 36120Zy3013 • Honda: 36120-Zy3-023 / 36120Zy3023 • Honda: 36120-Zx2-013 / 36120Zx2013 • Arco Marine: 6234 • Sierra: 18-6742 Specifications: • Type: Power Tilt Trim Motor • Voltage: 12V Dc • Rotation: Reversible • Connection: 2-Wire, 39" Cord Length, Round Plug Connector • Shaft: 2.3Mm Keyed D-Shaft • Housing Od: 3.091" (78.5Mm) • Shaft Od: 0.315" (8Mm) • Overall Length: 4.429" (112.5Mm) • Mounting Ring Od: 71Mm • Mounting Holes: 66Mm On Center • Weight: 3.01 Lbs (1.37 Kg) • Condition: New Honda Outboard Applications: • Bf175 175Hp V6 4-Stroke Vtec — A3, A6, Ak1, Ak2 (2003-2018) • Bf200 200Hp V6 4-Stroke Vtec — A2, A3, A6, Ak2 (2002-2018) • Bf225 225Hp V6 4-Stroke Vtec — A2, A3, A6, Ak1, Ak2 (2002-2018)
Source: Aftermarket
One Year Manufacturer's Warranty.
