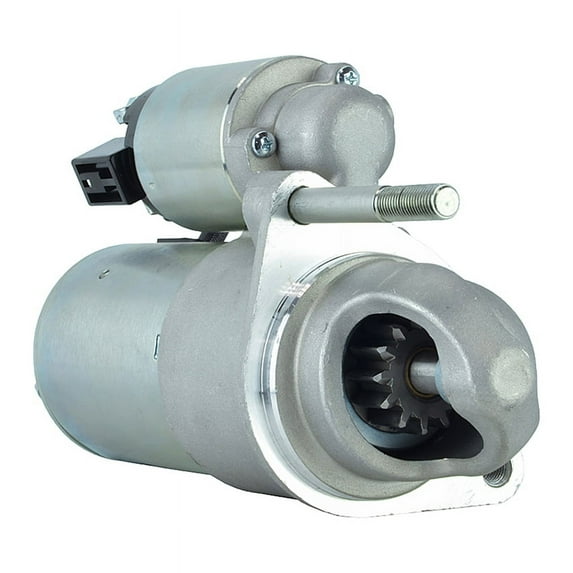

New 12 Volt 13T Starter Fits Hyundai Equus 5.0L 12-14 8000397 361003C230 8000502
(No ratings yet)
Key item features
- Rareelectrical Compatible With Delco, Genesis, Hyundai
- Source Applications Preserved Exactly: • Hyundai Equus Hyundai Equus 4.6L 4627Cc V8 Tau Engine (2011) • Hyundai Equus Hyundai Equus 5.0L 5038Cc V8 Tau Engine (2012-2014) • Hyundai Genesis Hyundai Genesis 4.6L 4627Cc V8 Tau Engine (2011-2012) • Hyundai Genesis Hyundai Genesis 5.0L 5038Cc V8 Tau Engine (2012-2013) • Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L 3778Cc V6 Lambda (2013-2016) Detailed Model Year Applications: • Hyundai Equus 4.6L V8 2011 • Hyundai Equus 5.0L V8 2012 • Hyundai Equus 5.0L V8 2013 • Hyundai Equus 5.0L V8 2014 • Hyundai Genesis Sedan 4.6L V8 2011 • Hyundai Genesis Sedan 4.6L V8 2012 • Hyundai Genesis Sedan 5.0L V8 2012 • Hyundai Genesis Sedan 5.0L V8 2013 • Hyundai Genesis Coupe 3.8L V6 2013 • Hyundai Genesis Coupe 3.8L V6 2014 • Hyundai Genesis Coupe 3.8L V6 2015 • Hyundai Genesis Coupe 3.8L V6 2016 Engine Specifications: • Hyundai Tau V8 4.6L 4627Cc (Equus/Genesis Sedan) • Hyundai Tau V8 5.0L 5038Cc (Equus/Genesis Sedan) • Hyundai Lambda V6 3.8L 3778Cc (Genesis Coupe) • All V6/V8 Dohc Gasoline Engines • 12V Dc Electrical System Fitment Boundary — Companion Part Distinction: • 6969N (This Part): 13-Tooth / 1.7Kw / 12V Cw • 6990N: 12-Tooth / 1.7Kw / 12V Cw (Different — Not Interchangeable) • Verify Tooth Count Before Ordering To Ensure Correct Fitment Starter Motor Type: • Design: Pmgr (Permanent Magnet Gear Reduction) • Type: Delco Permanent Magnet Gear Reduction Starter • Drive Type: Gear Reduction (Higher Cranking Torque) • Pinion: 13-Tooth Drive Pinion • Rotation: Clockwise (Cw) Viewed From Drive End • Mounting: 2-Hole Flange With M10-1.25 Threaded Starter Motor Specifications: • Product Type: Starter Motor • Unit Type: Delco Oem Design • Starter Type: Pmgr (Permanent Magnet Gear Reduction) • Voltage: 12V Dc • Power Output: 1.7 Kw • Rotation: Clockwise (Cw) • Teeth On Drive: 13 • Overall Length: 8.583 In / 218 Mm • Mounting Ear 1 Hole: M10-1.25 Threaded • Mounting Ear 2 Hole: M10-1.25 Threaded • Registry Od: 2.752 In / 69.9 Mm • Top Mounting Hole: 67.5Mm Long Threaded Extension Installed • (2) M6-1.0 Threaded Heat Shield Mounting Holes In De • Weight: 8.36 Lbs / 3.8 Kg • Quantity: 1 Unit • Condition: New Aftermarket
- Delco Oem Part Numbers: • Delco: 8000397 • Delco: 8000502 Hyundai Oem Part Numbers: • Hyundai: 361003C230 • Hyundai: 36100-3C230 • Hyundai: 361003F100 • Hyundai: 36100-3F100 Catalog Cross-Reference: • Item Reference: 6969N Specifications: • Product Type: Starter Motor • Unit Type: Delco Oem Design • Starter Type: Pmgr (Permanent Magnet Gear Reduction) • Voltage: 12V Dc • Power Output: 1.7 Kw • Rotation: Clockwise (Cw) • Teeth On Drive: 13 • Overall Length: 8.583 In / 218 Mm • Mounting Ear 1 Hole: M10-1.25 Threaded • Mounting Ear 2 Hole: M10-1.25 Threaded • Registry Od: 2.752 In / 69.9 Mm • Top Mounting Hole: 67.5Mm Long Threaded Extension • (2) M6-1.0 Threaded Heat Shield Holes In De • Weight: 8.36 Lbs / 3.8 Kg • Quantity: 1 Unit • Condition: New Aftermarket • Source: Aftermarket Quality Parts • Recommended Use: Oe Replacement For Hyundai Equus/Genesis Delco Starters • Product Fit: Direct Fit For 2011-2016 Hyundai V6/V8 Applications Vehicle Applications Summary: • Hyundai Equus 4.6L V8 2011 • Hyundai Equus 5.0L V8 2012-2014 • Hyundai Genesis 4.6L V8 2011-2012 • Hyundai Genesis 5.0L V8 2012-2013 • Hyundai Genesis Coupe 3.8L V6 2013-2016 • Engine Families: Hyundai Tau V8 / Lambda V6
- Source: Aftermarket
- One Year Manufacturer's Warranty.
Specs
- Manufacturer part number6969N2
- Vehicle makeHyundai
- BrandRareelectrical
- Vehicle fitment typeSpecific
- Volts12 V
- Weight9.05 lb
Current price is USD$125.55
Price when purchased online
- Free shipping
Free 30-day returns
Walmart Protection Plan by Allstate
(Only one option can be selected at a time)
How do you want your item?
Ships to
Arrives by Fri, May 15
|
Sold and shipped by Rareelectrical
4.43327239488117 stars out of 5, based on 547 seller reviews(4.4)547 seller reviews
Free 30-day returns
About this item
Product details
STARTER MOTOR — HYUNDAI EQUUS / GENESIS / GENESIS COUPE:
• Hyundai Equus Hyundai Equus 4.6L V8 2011
• Hyundai Equus Hyundai Equus 5.0L V8 2012
• Hyundai Equus Hyundai Equus 5.0L V8 2013
• Hyundai Equus Hyundai Equus 5.0L V8 2014
• Hyundai Genesis Hyundai Genesis Sedan 4.6L V8 2011-2012
• Hyundai Genesis Hyundai Genesis Sedan 5.0L V8 2012-2013
• Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L V6 2013
• Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L V6 2014
• Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L V6 2015
• Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L V6 2016
• Hyundai Tau V8 Engine (4627cc / 5038cc)
• Hyundai Lambda V6 Engine (3778cc)
• Delco Original Equipment Design
• PMGR Permanent Magnet Gear Reduction
• 12V DC / 1.7 kW / CW Rotation
• 13-Tooth Drive Pinion
• Length: 8.583 in (218 mm)
• Registry OD: 2.752 in (69.9 mm)
• M10-1.25 Mounting Holes (2)
• 67.5mm Long Threaded Top Extension
• (2) M6-1.0 Heat Shield Holes
• Weight: 8.36 lbs (3.8 kg)
OEM PART NUMBERS:
• Delco: 8000397 / 8000502
• Hyundai: 361003C230 / 36100-3C230
• Hyundai: 361003F100 / 36100-3F100
• Item Reference: 6969N
SPECIFICATIONS:
• Type: Starter Motor / Unit Type: Delco
• Design: PMGR / Voltage: 12V DC
• Power: 1.7 kW / Rotation: Clockwise
• Teeth on Drive: 13
• Overall Length: 218 mm (8.583 in)
• Weight: 3.8 kg / Condition: New Aftermarket
STARTER MOTOR — Direct OE Replacement:
Direct-fit 12V 1.7 kW PMGR starter for Hyundai Equus, Genesis sedan, and Genesis Coupe applications with Tau V8 or Lambda V6 engines.
⚠️ IMPORTANT: Verify tooth count (13T). Not interchangeable with 12T 6990N.
• Hyundai Equus Hyundai Equus 4.6L V8 2011
• Hyundai Equus Hyundai Equus 5.0L V8 2012
• Hyundai Equus Hyundai Equus 5.0L V8 2013
• Hyundai Equus Hyundai Equus 5.0L V8 2014
• Hyundai Genesis Hyundai Genesis Sedan 4.6L V8 2011-2012
• Hyundai Genesis Hyundai Genesis Sedan 5.0L V8 2012-2013
• Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L V6 2013
• Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L V6 2014
• Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L V6 2015
• Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L V6 2016
• Hyundai Tau V8 Engine (4627cc / 5038cc)
• Hyundai Lambda V6 Engine (3778cc)
• Delco Original Equipment Design
• PMGR Permanent Magnet Gear Reduction
• 12V DC / 1.7 kW / CW Rotation
• 13-Tooth Drive Pinion
• Length: 8.583 in (218 mm)
• Registry OD: 2.752 in (69.9 mm)
• M10-1.25 Mounting Holes (2)
• 67.5mm Long Threaded Top Extension
• (2) M6-1.0 Heat Shield Holes
• Weight: 8.36 lbs (3.8 kg)
OEM PART NUMBERS:
• Delco: 8000397 / 8000502
• Hyundai: 361003C230 / 36100-3C230
• Hyundai: 361003F100 / 36100-3F100
• Item Reference: 6969N
SPECIFICATIONS:
• Type: Starter Motor / Unit Type: Delco
• Design: PMGR / Voltage: 12V DC
• Power: 1.7 kW / Rotation: Clockwise
• Teeth on Drive: 13
• Overall Length: 218 mm (8.583 in)
• Weight: 3.8 kg / Condition: New Aftermarket
STARTER MOTOR — Direct OE Replacement:
Direct-fit 12V 1.7 kW PMGR starter for Hyundai Equus, Genesis sedan, and Genesis Coupe applications with Tau V8 or Lambda V6 engines.
⚠️ IMPORTANT: Verify tooth count (13T). Not interchangeable with 12T 6990N.
- Rareelectrical Compatible With Delco, Genesis, Hyundai
- Source Applications Preserved Exactly: • Hyundai Equus Hyundai Equus 4.6L 4627Cc V8 Tau Engine (2011) • Hyundai Equus Hyundai Equus 5.0L 5038Cc V8 Tau Engine (2012-2014) • Hyundai Genesis Hyundai Genesis 4.6L 4627Cc V8 Tau Engine (2011-2012) • Hyundai Genesis Hyundai Genesis 5.0L 5038Cc V8 Tau Engine (2012-2013) • Hyundai Genesis Coupe Hyundai Genesis Coupe 3.8L 3778Cc V6 Lambda (2013-2016) Detailed Model Year Applications: • Hyundai Equus 4.6L V8 2011 • Hyundai Equus 5.0L V8 2012 • Hyundai Equus 5.0L V8 2013 • Hyundai Equus 5.0L V8 2014 • Hyundai Genesis Sedan 4.6L V8 2011 • Hyundai Genesis Sedan 4.6L V8 2012 • Hyundai Genesis Sedan 5.0L V8 2012 • Hyundai Genesis Sedan 5.0L V8 2013 • Hyundai Genesis Coupe 3.8L V6 2013 • Hyundai Genesis Coupe 3.8L V6 2014 • Hyundai Genesis Coupe 3.8L V6 2015 • Hyundai Genesis Coupe 3.8L V6 2016 Engine Specifications: • Hyundai Tau V8 4.6L 4627Cc (Equus/Genesis Sedan) • Hyundai Tau V8 5.0L 5038Cc (Equus/Genesis Sedan) • Hyundai Lambda V6 3.8L 3778Cc (Genesis Coupe) • All V6/V8 Dohc Gasoline Engines • 12V Dc Electrical System Fitment Boundary — Companion Part Distinction: • 6969N (This Part): 13-Tooth / 1.7Kw / 12V Cw • 6990N: 12-Tooth / 1.7Kw / 12V Cw (Different — Not Interchangeable) • Verify Tooth Count Before Ordering To Ensure Correct Fitment Starter Motor Type: • Design: Pmgr (Permanent Magnet Gear Reduction) • Type: Delco Permanent Magnet Gear Reduction Starter • Drive Type: Gear Reduction (Higher Cranking Torque) • Pinion: 13-Tooth Drive Pinion • Rotation: Clockwise (Cw) Viewed From Drive End • Mounting: 2-Hole Flange With M10-1.25 Threaded Starter Motor Specifications: • Product Type: Starter Motor • Unit Type: Delco Oem Design • Starter Type: Pmgr (Permanent Magnet Gear Reduction) • Voltage: 12V Dc • Power Output: 1.7 Kw • Rotation: Clockwise (Cw) • Teeth On Drive: 13 • Overall Length: 8.583 In / 218 Mm • Mounting Ear 1 Hole: M10-1.25 Threaded • Mounting Ear 2 Hole: M10-1.25 Threaded • Registry Od: 2.752 In / 69.9 Mm • Top Mounting Hole: 67.5Mm Long Threaded Extension Installed • (2) M6-1.0 Threaded Heat Shield Mounting Holes In De • Weight: 8.36 Lbs / 3.8 Kg • Quantity: 1 Unit • Condition: New Aftermarket
- Delco Oem Part Numbers: • Delco: 8000397 • Delco: 8000502 Hyundai Oem Part Numbers: • Hyundai: 361003C230 • Hyundai: 36100-3C230 • Hyundai: 361003F100 • Hyundai: 36100-3F100 Catalog Cross-Reference: • Item Reference: 6969N Specifications: • Product Type: Starter Motor • Unit Type: Delco Oem Design • Starter Type: Pmgr (Permanent Magnet Gear Reduction) • Voltage: 12V Dc • Power Output: 1.7 Kw • Rotation: Clockwise (Cw) • Teeth On Drive: 13 • Overall Length: 8.583 In / 218 Mm • Mounting Ear 1 Hole: M10-1.25 Threaded • Mounting Ear 2 Hole: M10-1.25 Threaded • Registry Od: 2.752 In / 69.9 Mm • Top Mounting Hole: 67.5Mm Long Threaded Extension • (2) M6-1.0 Threaded Heat Shield Holes In De • Weight: 8.36 Lbs / 3.8 Kg • Quantity: 1 Unit • Condition: New Aftermarket • Source: Aftermarket Quality Parts • Recommended Use: Oe Replacement For Hyundai Equus/Genesis Delco Starters • Product Fit: Direct Fit For 2011-2016 Hyundai V6/V8 Applications Vehicle Applications Summary: • Hyundai Equus 4.6L V8 2011 • Hyundai Equus 5.0L V8 2012-2014 • Hyundai Genesis 4.6L V8 2011-2012 • Hyundai Genesis 5.0L V8 2012-2013 • Hyundai Genesis Coupe 3.8L V6 2013-2016 • Engine Families: Hyundai Tau V8 / Lambda V6
- Source: Aftermarket
- One Year Manufacturer's Warranty.
