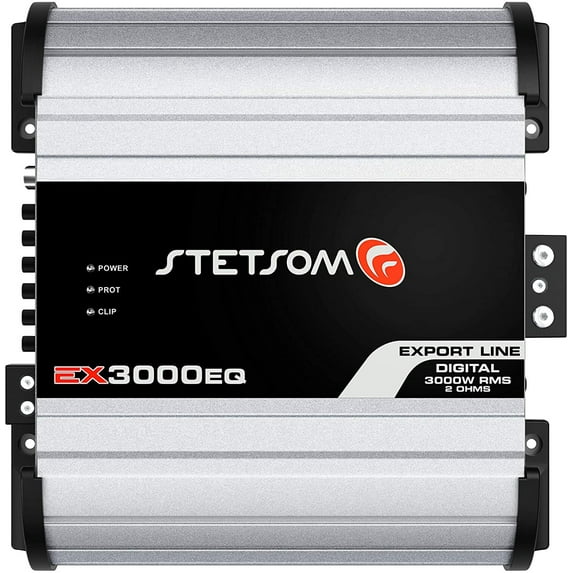

Stetsom EX 3000 EQ 1 Channel Digital Amplifier Full Range Class D 3k RMS

Stetsom's EX 3000 EQ amp is the best-selling 3000 Watts amplifier in the world. The EX series are excellent with bass as well as with voice. You can't go wrong with this amp.

TECHNICAL SPECS (1 Ohm):

• RMS Power at 1 Ohm 12.6V: 3000W RMS
• RMS Power at 2 Ohm 12.6V: 2100W RMS
• RMS Power at 4 Ohm 12.6V: 1150W RMS
• RMS Power at 1 Ohm 14.4V: 4100W RMS
• RMS Power at 2 Ohm 14.4V: 2590W RMS
• Supply Voltage: 9,5 ~ 15Vdc
• Frequency Response: 10Hz ~25KHz
• Crossover Low Pass: 50Hz ~25KHz
• Crossover High Pass: 10Hz ~700Hz
• Signal to Noise: > 90 dB
• Harmonic Distortion: < 10 % THD
• Input Sensitivity: 0,2V
• Input Impedance: 12K OHMS
• Min. Impedance Output: 1 OHM
• Consumption with Musical Signal: 2A ~ 175A
• Consumption with Bass: 2A ~ 351A
• Dimensions (H x W x L): 3 x 7.4 x 8.7 inches (77 x 222 x 188 mm)
• Weight: 5.29 lbs (2.4 kg)

TECHNICAL SPECS (2 Ohms):

• Operation Class: D
• Number of Channels: 1
• RMS Power at 2 Ohm 12.6V: 3000W RMS
• RMS Power at 4 Ohm 12.6V: 2100W RMS
• RMS Power at 2 Ohm 14.4V: 3600W RMS
• RMS Power at 4 Ohm 14.4V: 2400W RMS
• Supply Voltage: 9,5 ~ 15V
• Frequency Response: 10Hz ~25KHz
• Crossover Low Pass: 50Hz ~25KHz
• Crossover High Pass: 10Hz ~700Hz
• Signal to Noise: > 90 dB
• Harmonic Distortion: < 0,9 % THD
• Input Sensitivity: 0,2V
• Input Impedance: 13K OHMS
• Impedance Output: 2 OHMS
• Consumption with Musical Signal: 2A ~134A
• Consumption with Bass: 2A ~269A
• Dimensions (H x W x D): 3.2 x 9.5 x 7.5 inches
• Weight: 5.3 lbs (2.4 kg)

Download Manual
