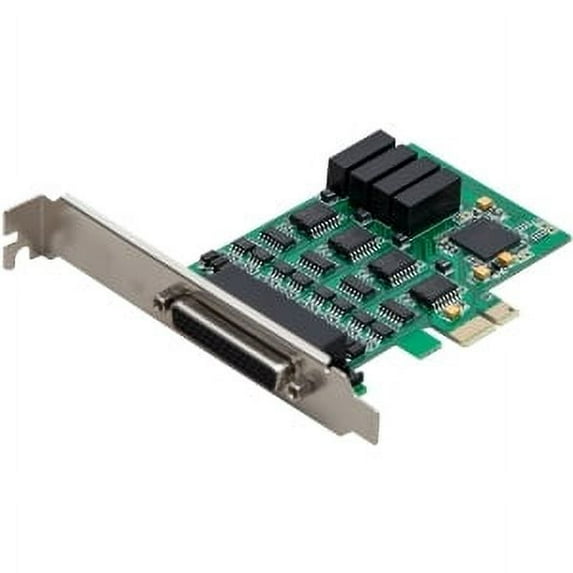

PCIe 2.0 4x Port Serial RS-422/485 Card, Support up to x16 Lane, Fan-Out Cable, Exar XR17V354 Chipset

(No ratings yet)

Key item features

Exar Chipset: XR17V358
PCIe 2.0 Gen 1 compliant
x1 Link, dual simplex, 2.5Gbps in each direction
Supports x1, x2, x4, x8, x16 PCIe Bus connector keys
RS485 signals: DATA+ (B) DATA- (A) GND
- RS422 signals: T/R+ T/R- RXD+ RXD- GND
  - 600W surge protection, 15KV ESD protection for serial ports
  - Working mode: asynchronous working, point-to-point to point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
  - Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
  - Transmission media: twisted-pair cable or shielded cable
  - Interface protection: 600W surge proteection, 15 kV ESD protection for all serial ports
  - 2500Vrms magnetic coupling isolation voltage protection
  - High common-mode transient immunity: 25KV / us
    - 1000 V DCDC power supply isolation module protection
    - Direction Control
    - UART interface support for 7 or 8 data bits, 1 or 2 stop bits and even/odd/mark/space/none
    - Flow control none, hardware and xon/xoff
    - Load capability supports point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
    - Extended operating temperature range: -40 to 85 C

Specs

Computer port card type
Controller Card
In/Out type
RS-232
Input/output quantity
4
Brand
IO Crest
Inputs/Outputs
4 x RS-232 Serial
Height
1 in

Current price is $74.47

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

The XR17V358 series Multi-I/O PCI-Express controller cards are the high performance RS-232 serial interface controller for home and industrial users. They are compatible with industrial standard 16C550 UART, which provide a low cost connection platform for industrial machines, POS machines, external modems, mice, etc.

Exar Chipset: XR17V358
PCIe 2.0 Gen 1 compliant
x1 Link, dual simplex, 2.5Gbps in each direction
Supports x1, x2, x4, x8, x16 PCIe Bus connector keys
RS485 signals: DATA+ (B) DATA- (A) GND
- RS422 signals: T/R+ T/R- RXD+ RXD- GND
  - 600W surge protection, 15KV ESD protection for serial ports
  - Working mode: asynchronous working, point-to-point to point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
  - Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
  - Transmission media: twisted-pair cable or shielded cable
  - Interface protection: 600W surge proteection, 15 kV ESD protection for all serial ports
  - 2500Vrms magnetic coupling isolation voltage protection
  - High common-mode transient immunity: 25KV / us
    - 1000 V DCDC power supply isolation module protection
    - Direction Control
    - UART interface support for 7 or 8 data bits, 1 or 2 stop bits and even/odd/mark/space/none
    - Flow control none, hardware and xon/xoff
    - Load capability supports point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
    - Extended operating temperature range: -40 to 85 C

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Computer port card type

Controller Card

In/Out type

RS-232

Input/output quantity

OS

Windows XP, Vista, 7, 8, Server 2003, Server 2008, Server 2012; Linux
