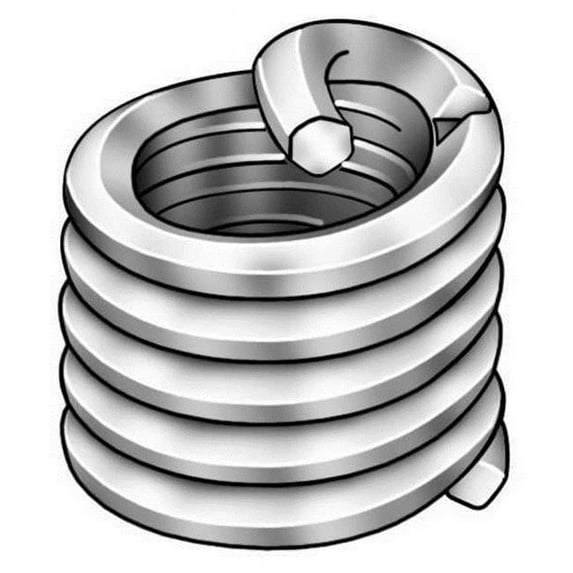

Helical Insert

Helical Inserts are precision formed screw thread coils of stainless steel. Helical inserts have a diamond shaped cross section. Helical inserts provide permanent conventional 60° internal screw threads that accommodate any standard bolt or screw.

• Type - Free Running.
• Material - 304 Stainless Steel.
• Internal Thread Size - M12 x 1.75.
• Thread Type - Metric Coarse.
• Thread Direction - Right Hand.
• Length - 18 mm.
• Free Coil Size - 14.13-15 in. Dia.
• Drill Size - 31/64 in.
• Tensile Strength - 200,000 PSI.
• Rockwell Hardness - C43-C50.
• Application - For Metal.
• Package Quantity - 5.
• Body Style - Helical.
• Exterior Finish - Plain.
