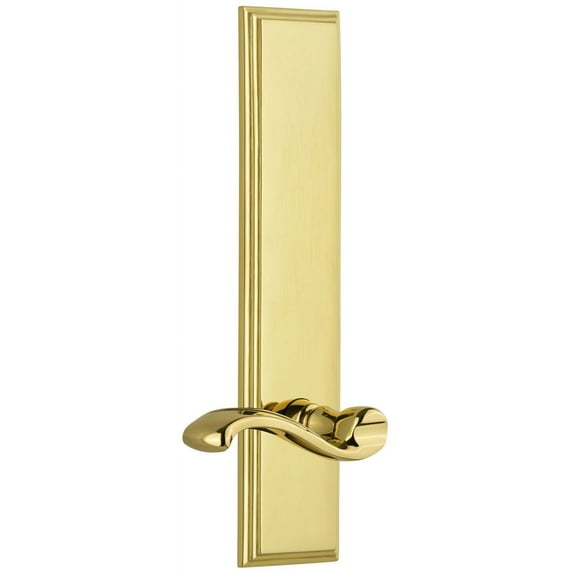

Grandeur Carprt_Tp_Prv_234_Lh Carre Solid Brass Rose Left Handed Tall Plate Privacy Door

Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

• Crafted with solid brass
• Intended for use with left handed door configurations
• Easily installs on standard prepared doors
• Includes a 2-3/4" backset and square corner latch
• Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
• Does meet criteria of the American's with Disabilities Act (ADA)
• Hand assembled in the United States

Product Technologies:

• Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 2"
• Handing: Left
• Trim Height: 11"
• Trim Width: 2-1/2"
• Handle Length: 4-5/8"
• Handle Projection: 2-11/16"
• Latch Faceplate: Square Corner
• Locking Mechanism: Trim Lock
• Material: Brass
