Hero image 0 of JBL Commercial Amp+24) Black 5" Ceiling Speakers For Restaurant/Bar/Office/Hotel, 0 of 12

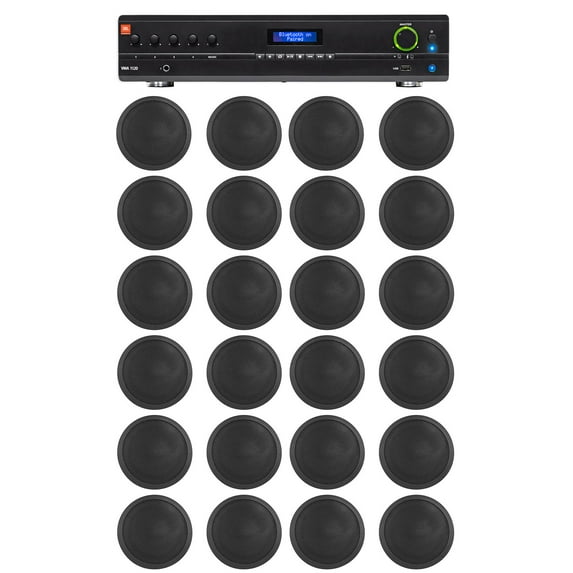

JBL Commercial Amp+24) Black 5" Ceiling Speakers For Restaurant/Bar/Office/Hotel
(No ratings yet)
Key item features
- (1) JBL VMA1120 Commercial/Restaurant 120W 70v Bluetooth Mixer/Amplifier, 5 Inputs. (24) Rockville CCL5T Black 70V 5" Commercial Ceiling Speakers 4 Restaurant/Office. Features of VMA1120: JBL VMA1120 Commercial/Restaurant 120 Watt Bluetooth Mixer/Amplifier with 5 Inputs. 5-Input Mixer. Supports USB Drives and Bluetooth. 120W, 1-Output Amplifier. Euroblock, RCA, and 1/4" Inputs. Euroblock Outputs. Per-Channel Bass and Treble Controls. Voice-Activated Ducking. Front-Panel Display and Controls
- Configurable Output Routing. Includes Rack Mount Kit. Specifications: Output Power Per Channel: 120 Watts into 4 Ohms or 8 Ohms. Insertion Loss: 70 V and 100 V Outputs: 1 dB Max.. Input Channels: 5. Output Channels: 1. Tone Control: Bass and Treble non-detented potentiometers on each channel Bass: 14 dB @ 50 Hz Treble: 14 dB @ 10 kHz. Bass: 14 dB @ 50 Hz. Treble: 14 dB @ 10 kHz. Input Sensitivity: Mic Input: 5.5 mVrms Line Input: 1.3 Vrms RCA Input (Stereo In): 130 mVrms
- Mic Input: 5.5 mVrms. Line Input: 1.3 Vrms. RCA Input (Stereo In): 130 mVrms. Frequency Response: Measured at 2.83 Vrms into rated load impedance at any output 4/8 Ohms Output: 20 Hz to 20 kHz, 2 dB 70 V/100 V Outputs: 80 Hz to 15 kHz 3 dB. 4/8 Ohms Output: 20 Hz to 20 kHz, 2 dB. 70 V/100 V Outputs: 80 Hz to 15 kHz 3 dB. Total Harmonic Distortion (THD): Power Amp Output: <0.5%, 20 Hz to 20 kHz. Signal to Noise Ratio: >76 dB. Input Impedance: Mic: 400 Ohms Line: 20k Ohms RCA: 50k Ohms
- Mic: 400 Ohms. Line: 20k Ohms. RCA: 50k Ohms. Phantom Power: 27 VDC. Crosstalk: -70 dB. Nominal Input Voltages: Nominal AC Line Voltages: 100, 120, 220, 220 to 240 VAC, 50/60 Hz. Minimum Load Impedance: Low Impedance Output: 4 Ohms 70 V Output: 40 Ohms 100 V Output: 80 Ohms. Low Impedance Output: 4 Ohms. 70 V Output: 40 Ohms. 100 V Output: 80 Ohms. Operating Temperature: 32F to 95F. Humidity: 95% RH. Storage Temperature: -4F to 185F. Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches
- Product Weight: 20.2 Lbs.. Tone Control: Bass and Treble non-detented potentiometers on each channel. Bass: 14 dB @ 50 Hz. Treble: 14 dB @ 10 kHz. Input Sensitivity: Mic Input: 5.5 mVrms. Line Input: 1.3 Vrms. RCA Input (Stereo In): 130 mVrms. Frequency Response: Measured at 2.83 Vrms into rated load impedance at any output. 4/8 Ohms Output: 20 Hz to 20 kHz, 2 dB. 70 V/100 V Outputs: 80 Hz to 15 kHz 3 dB. Input Impedance: Mic: 400 Ohms. Line: 20k Ohms. RCA: 50k Ohms
Specs
- Home speaker & subwoofer typeIn Ceiling Speakers
- Recommended locationIndoor
- BrandJBL
- ColorBlack
- WirelessY
- Woofer size5 in
Current price is USD$794.58
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives between May 15 - May 18
|
Sold and shipped by Audiosavings
4.291375291375291 stars out of 5, based on 1716 seller reviews(4.3)1716 seller reviews
Free 30-day returns
About this item
Product details
Package Includes:
- (1) JBL VMA1120 Commercial/Restaurant 120W 70v Bluetooth Mixer/Amplifier, 5 Inputs
- (24) Rockville CCL5T Black 70V 5"" Commercial Ceiling Speakers 4 Restaurant/Office
- JBL VMA1120 Commercial/Restaurant 120 Watt Bluetooth Mixer/Amplifier with 5 Inputs
- 5-Input Mixer
- Supports USB Drives and Bluetooth
- 120W, 1-Output Amplifier
- Euroblock, RCA, and 1/4"" Inputs
- Euroblock Outputs
- Per-Channel Bass and Treble Controls
- Voice-Activated Ducking
- Front-Panel Display and Controls
- Configurable Output Routing
- Includes Rack Mount Kit
- Output Power Per Channel: 120 Watts into 4 Ohms or 8 Ohms
- Insertion Loss: 70 V and 100 V Outputs: 1 dB Max.
- Input Channels: 5
- Output Channels: 1
- Tone Control: Bass and Treble non-detented potentiometers on each channel
- Bass: ±14 dB @ 50 Hz
- Treble: ±14 dB @ 10 kHz
- Input Sensitivity:
- Mic Input: 5.5 mVrms
- Line Input: 1.3 Vrms
- RCA Input (Stereo In): 130 mVrms
- Frequency Response: Measured at 2.83 Vrms into rated load impedance at any output
- 4/8 Ohms Output: 20 Hz to 20 kHz, ±2 dB
- 70 V/100 V Outputs: 80 Hz to 15 kHz ±3 dB
- Total Harmonic Distortion (THD): Power Amp Output: <0.5%, 20 Hz to 20 kHz
- Signal to Noise Ratio: >76 dB
- Input Impedance:
- Mic: 400 Ohms
- Line: 20k Ohms
- RCA: 50k Ohms
- Phantom Power: 27 VDC
- Crosstalk: -70 dB
- Nominal Input Voltages: Nominal AC Line Voltages: 100, 120, 220, 220 to 240 VAC, 50/60 Hz
- Minimum Load Impedance:
- Low Impedance Output: 4 Ohms
- 70 V Output: 40 Ohms
- 100 V Output: 80 Ohms
- Operating Temperature: 32°F to 95°F
- Humidity: 95% RH
- Storage Temperature: -4°F to 185°F
- 5w (White)
- 2.5w (Green)
- 1.25w (Red)
- (24) Rockville CCL5T Black 70V 5"" Commercial Ceiling Speakers
- Perfect for PA announcements or background music or any other applications where you want many speakers installed
- Transformer with terminals for 5 Watts, 2.5 watts, or 1.25 watts
- Double Paper Cone
- 0.5” voice coil
- 1.7 oz ferrite magnet
- 5” Woofer
- Fireproof screw terminal block
- High Quality Spring Loaded Push Terminals
- Painta
70V Power Options:
Features:
- (1) JBL VMA1120 Commercial/Restaurant 120W 70v Bluetooth Mixer/Amplifier, 5 Inputs. (24) Rockville CCL5T Black 70V 5" Commercial Ceiling Speakers 4 Restaurant/Office. Features of VMA1120: JBL VMA1120 Commercial/Restaurant 120 Watt Bluetooth Mixer/Amplifier with 5 Inputs. 5-Input Mixer. Supports USB Drives and Bluetooth. 120W, 1-Output Amplifier. Euroblock, RCA, and 1/4" Inputs. Euroblock Outputs. Per-Channel Bass and Treble Controls. Voice-Activated Ducking. Front-Panel Display and Controls
- Configurable Output Routing. Includes Rack Mount Kit. Specifications: Output Power Per Channel: 120 Watts into 4 Ohms or 8 Ohms. Insertion Loss: 70 V and 100 V Outputs: 1 dB Max.. Input Channels: 5. Output Channels: 1. Tone Control: Bass and Treble non-detented potentiometers on each channel Bass: 14 dB @ 50 Hz Treble: 14 dB @ 10 kHz. Bass: 14 dB @ 50 Hz. Treble: 14 dB @ 10 kHz. Input Sensitivity: Mic Input: 5.5 mVrms Line Input: 1.3 Vrms RCA Input (Stereo In): 130 mVrms
- Mic Input: 5.5 mVrms. Line Input: 1.3 Vrms. RCA Input (Stereo In): 130 mVrms. Frequency Response: Measured at 2.83 Vrms into rated load impedance at any output 4/8 Ohms Output: 20 Hz to 20 kHz, 2 dB 70 V/100 V Outputs: 80 Hz to 15 kHz 3 dB. 4/8 Ohms Output: 20 Hz to 20 kHz, 2 dB. 70 V/100 V Outputs: 80 Hz to 15 kHz 3 dB. Total Harmonic Distortion (THD): Power Amp Output: <0.5%, 20 Hz to 20 kHz. Signal to Noise Ratio: >76 dB. Input Impedance: Mic: 400 Ohms Line: 20k Ohms RCA: 50k Ohms
- Mic: 400 Ohms. Line: 20k Ohms. RCA: 50k Ohms. Phantom Power: 27 VDC. Crosstalk: -70 dB. Nominal Input Voltages: Nominal AC Line Voltages: 100, 120, 220, 220 to 240 VAC, 50/60 Hz. Minimum Load Impedance: Low Impedance Output: 4 Ohms 70 V Output: 40 Ohms 100 V Output: 80 Ohms. Low Impedance Output: 4 Ohms. 70 V Output: 40 Ohms. 100 V Output: 80 Ohms. Operating Temperature: 32F to 95F. Humidity: 95% RH. Storage Temperature: -4F to 185F. Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches
- Product Weight: 20.2 Lbs.. Tone Control: Bass and Treble non-detented potentiometers on each channel. Bass: 14 dB @ 50 Hz. Treble: 14 dB @ 10 kHz. Input Sensitivity: Mic Input: 5.5 mVrms. Line Input: 1.3 Vrms. RCA Input (Stereo In): 130 mVrms. Frequency Response: Measured at 2.83 Vrms into rated load impedance at any output. 4/8 Ohms Output: 20 Hz to 20 kHz, 2 dB. 70 V/100 V Outputs: 80 Hz to 15 kHz 3 dB. Input Impedance: Mic: 400 Ohms. Line: 20k Ohms. RCA: 50k Ohms
