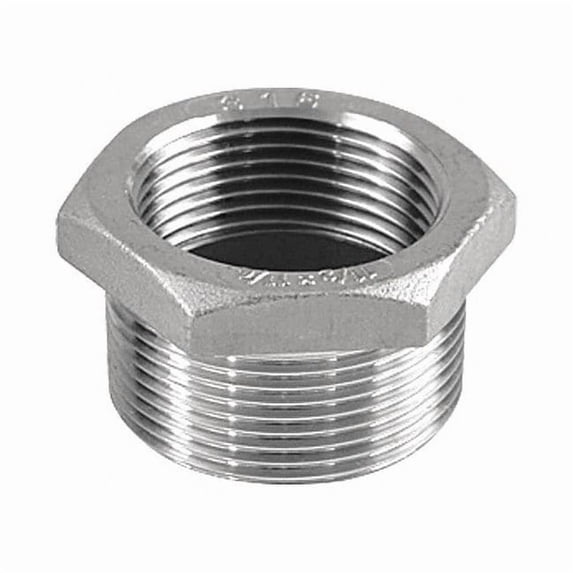

Manufacturer Varies Hex Reducing Bushing, 316 SS, 1 x 1/4 in 600B113N010014

The ZORO SELECT - 600B113N010014 is a hex reducing bushing constructed from 316 stainless steel. It features a hexagonal external profile that allows it to be tightened with a wrench to engage the threaded connection. Configured to connect 1" NPT male on Side A to 1/4" NPT female on Side B; this fitting screws into a larger female-threaded opening and provides a smaller, male-threaded connection. Media compatibility: air, natural gas, non-potable water, oil, potable water, and steam. Key Features: - Material: 316 stainless steel - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi, and maximum steam pressure of 150 psi - Connection Type: Male NPT (1" nominal size) on Side A and Female NPT (1/4" nominal size) on Side B - Pipe Size: 1" x 1/4" - Pipe Schedule: 40 - Hex Size: 38 mm for wrench tightening - Overall Length: 32.5 mm - Standards: Material conforms to ASTM-A-351; threads conform to ANSI B1.20.1; meets MSS-SP-114 Class 150 pressure ratings - Does not include pre-applied thread sealant or seals - Low Lead Compliance: Compliant for potable water use
