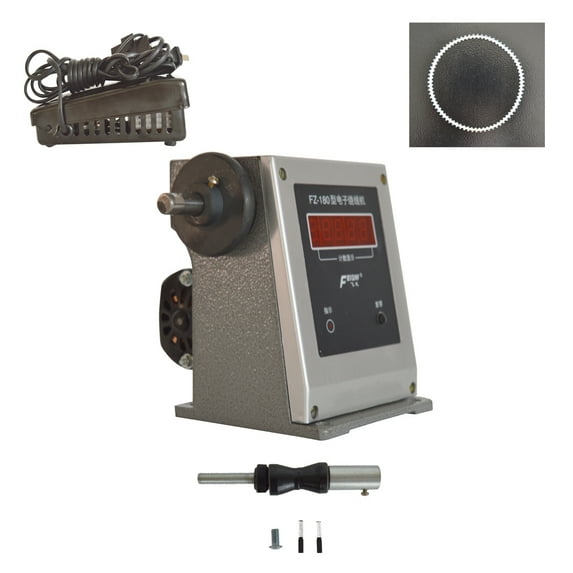

TECHTONGDA 220V Electric Transformer Electronic Winding Machine Pedal Type 500-4000RPM

Product description：
This winding machine is widely used in winding various inductor coils, instrument coils, relays, timers, various coils, power supplies, transformers, etc.
in telecommunication and electric appliance industries.The design is novel and beautiful, the operation is convenient and flexible, the work efficiency is high, the count is accurate, the noise is low, does not have the gear drive.
Product Parameters
Model：FZ-180
Voltage：220V/50Hz
Input Power：150W
Output power:75W
Spindle speed:500-4000rpm/min(Foot switch adjustment)
But the winding diameter:0.03-0.35mm(0.001-0.014inches)
Coil diameter:65mm(2.56inches)
loop length:70mm(2.75inches)
Count range:0-99999 turns
Machine material:Cast iron
Net weight:6.8lbs
Other features:Blackout protection data
Item Included
A set of 220V pedal electron winding machine（056437）
