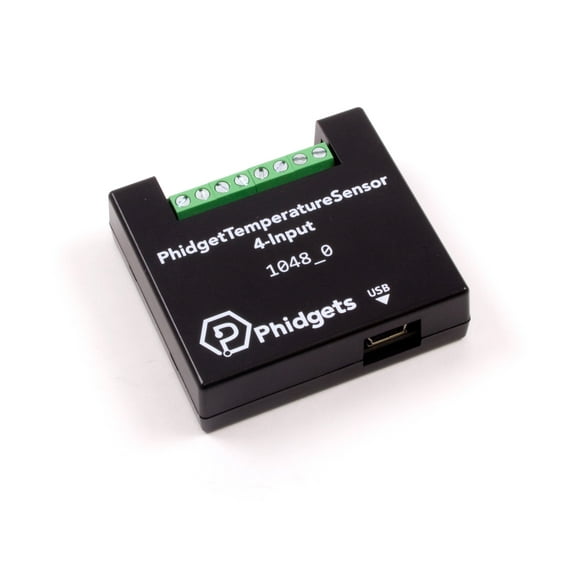

4-Input Temperature Sensor USB

Read up to four thermocouples via USB with the 1048_0B Temperature Sensor 4-Input Boardto measure the temperature of four different objects. Note: The 1048_0B is identical to the 1048_0, except that it comes pre-assembled in a plastic shell enclosure and you have the option of which length of USB cable you want to include. Thermocouples are widely used to measure extreme temperatures impossible to measure with other types of sensors. J, K, E and T thermocouples are directly supported in the library and return the measured temperature in °C. It is possible to interface other thermocouple types by converting the measured potential returned by the Temperature Sensor into Celsius using the appropriate tables; the formula and links to the tables are described in the 1048 User Guide. Very long thermocouples are okay (even 100m), but if there is measurement stability issues or USB resets, ferrite beads can be added to the thermocouple wire close to the Phidget Temperature Sensor. See our tutorial on Addressing EMI Issues. Comes Packaged with Plastic shell enclosure
