3Pcs USB Humidifier Module USB Spray Module Circuit Board Atomization Module
Key item features
- EFFICIENT ATOMIZATION: This module operates at high frequency with a micrometer aperture for producing a fine mist effectively, for maintaining optimal humidity levels.
- EASY POWER CONTROL: Simply weld the left and right points of the switch to activate power without manual intervention, making it user-friendly for all.
- AND SAFE DESIGN: The waterproof adhesive protects against circuit issues while the silver oxide treatment on the atomizing sheet boosts longevity and efficiency.
- CLEAR WIRING GUIDELINES: Featuring 80mm wires with clear positive and negative markings for easy connection, this module ensures a smooth installation process.
Specs
- BrandHastore
- Has written warrantyNo
More seller options (1)
About this item
Product details
Features:
*High-Frequency Performance: This atomizing device operates with high-frequency oscillation and features a micrometer aperture, resulting in a large amount of atomization with fine mist particles and a high spray rate.
*Great Usage Conditions: The atomizing piece should be used in conjunction with a circuit board that matches its frequency to achieve optimal spray output, efficient performance.
*Power Activation: By welding the left and right points of the switch together, users can enable power without needing to control the switch manually, allowing for continuous spraying.
*Wiring Specifications: The device includes two wires, with the red wire representing positive and the black wire representing negative. Each wire is 80mm long and terminates with terminal blocks for easy connections.
*Good and Protective Features: Waterproof adhesive is applied to the solder points of the wires to prevent circuit interruptions. Additionally, the atomizing sheet is treated with a silver oxide layer.
Specifications:
Part Name: Humidifier Module
Material: Plastic,Metal
Size: Standard
Color: Green
PCB board size: 35mm*19mm/.38*0.75inch
Voltage: 5V Current: 300mA
Frequency: 110KHz Power: 2W
Aperture: 5um
Holes: 740
Wire length: 80mm/3.15inch
Atomized steel sheet diameter: 16mm/0.63inch
Rubber ring diameter: 20mm/0.79inch
Rubber ring thickness: 4mm/0.16inch
Package Content:
- EFFICIENT ATOMIZATION: This module operates at high frequency with a micrometer aperture for producing a fine mist effectively, for maintaining optimal humidity levels.
- EASY POWER CONTROL: Simply weld the left and right points of the switch to activate power without manual intervention, making it user-friendly for all.
- AND SAFE DESIGN: The waterproof adhesive protects against circuit issues while the silver oxide treatment on the atomizing sheet boosts longevity and efficiency.
- CLEAR WIRING GUIDELINES: Featuring 80mm wires with clear positive and negative markings for easy connection, this module ensures a smooth installation process.
Specifications
Brand
Has written warranty
Warranty
Warranty information
Similar items you might like
Based on what customers bought

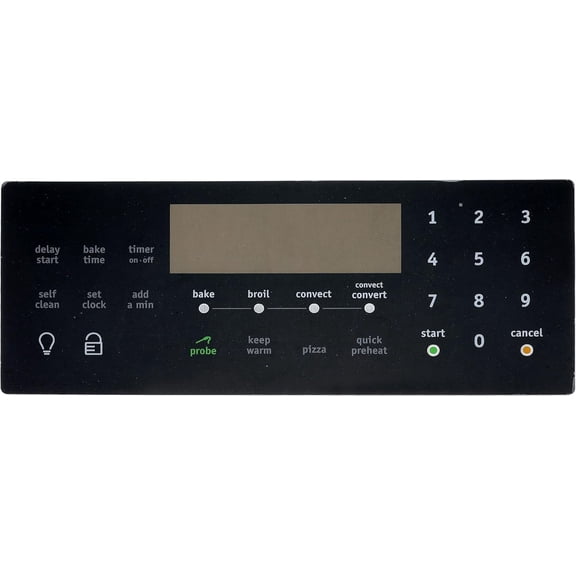

Navellon Range Oven Control Board Overlay Replacement for Frigidaire, Replaces 316419828 $14.99
