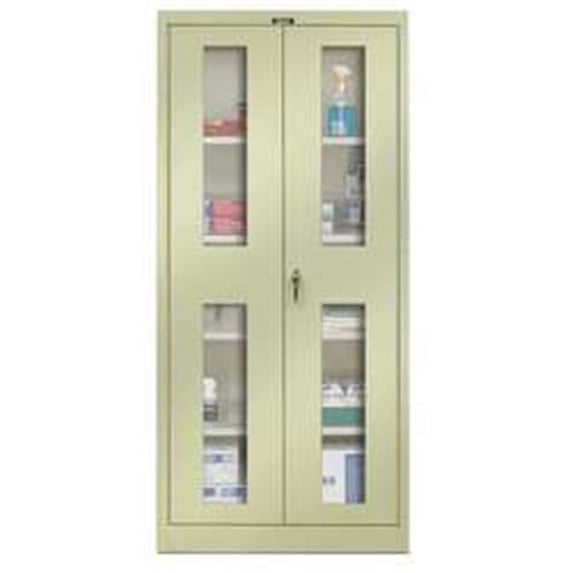

Hallowell 415S18EV-PT 400 Series Stationary Ventilated Storage Cabinet, 36W in. x 18D in. x 72H in. , 729 Parchment, Single Tier, Double Ventilated Door, 1-Wide, Knock-down

Fabricate cabinets square, rigid and without warp, with metal faces flat and free from dents or distortion. Make all exposed metal edges safe to touch. Weld frame members together to form rigid, one-piece structure. Weld, bolt, or rivet other joints and connections as standard with manufacturer. Grind exposed welds flush. Do not expose bolts or rivet heads on fronts of cabinet doors or frames.

• 22 Gauge body.
• 22 Gauge Shelves adjust on 2 in. center.
• 22 Gauge door with 16 Gauge frame.
• 16 Gauge continuous piano hinge.
• 200 lb shelf capacity.
• Doors include key lock and 3-point turn handle.
• Door Type - Double Ventilated Door.
• Type - Single Tier.
• Color - Parchment.
• 1-Wide.
• Knock-down.
• Dimensions - 36W in. x 18D in. x 72H in.

• All cabinet parts to be cleaned and coated after fabrication with a seven stage zinc/iron phosphate solution to inhibit corrosion, followed by a coat of high grade custom blend powder electrostatically sprayed and baked at 350 degrees Fahrenheit for a minimum of 20 minutes to provide a tough durable finish. Color to be Hallowell’s #729 Parchment OR #708 Midnight Ebony OR #725 Hallowell Gray.

• Fabricate of 16 gauge (minimum) channels, with integral continuous door stop/strike formed on both latch and hinge side vertical members. Cross frame members of 16 gauge channel shapes shall be securely welded to the vertical framing members to ensure rigidity. Bottom frame member to be not less than 4 in. high.

• Right and left doors shall each be fabricated from single sheet prime 22 gauge with single bends at top and bottom and double bends at the sides. Doors shall include a 3 in&- SKU: HLWL3853
