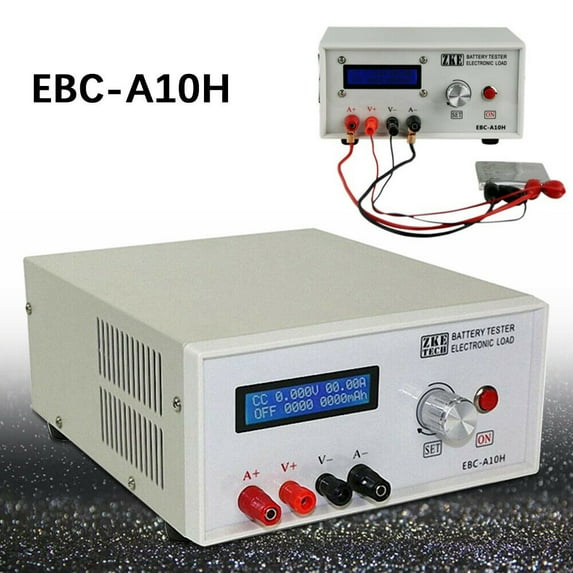

EBC-A10H Electronic Load Li/Pb Battery Capacity Tester Charge Discharge Tester

Product description:

EBC-A10H is an electronic load with charging function. It is suitable for charging and discharging capacitance test of various batteries, mobile power discharge test, charging head power performance test, support for connecting to computers, and more extended functions through online software.

The package includes:

1X tester

1X on-line line

2X1 pairs test clip

1X power cord

Product specifications:

Power: AC110V

Voltage setting: Discharge: 0.00-30.00V, minimum step size 0.01V

Charging: 0.00-22.00V, minimum step size 0.01V

Current setting: Discharge: 0.05-10.00A minimum step size 0.01A (automatic current limit when power exceeds limit)

Charging: 0.05-5.00A minimum step size 0.01A (maximum current limited by supply current)

Discharge mode: DSC-CC: constant discharge current for testing battery capacity or supply current

DSC-CP: Constant discharge power for simulating constant power equipment or testing power supply

Charging method: standard charging: support nickel hydrogen, nickel chromium, lithium, iron lithium, lead acid

CHG-CV: Custom constant current constant voltage charging, only for batteries

Automatic charge and discharge: support automatic charging - discharge - charging mode for testing battery capacity

Voltage test: 0.002-4.500V (low voltage) accuracy is 0.003V, error ± 0.5%

4.50V-30.00V (high voltage) accuracy to 0.01V, error ± 0.5%

Current test: 0.05-10.000A, accuracy 0.005A, error ±0.5%

Capacity test: 10Ah, resolution is 0.001Ah

10AH-100Ah, resolution is 0.01Ah

Above 100Ah, resolution 0.1Ah

Connection method: four-wire detection, separate wiring of voltage and current channels to ensure measurement accuracy

LCD display: voltage, current, capacity, time, power, energy test data

Computer online: dedicated USB to TTL serial port (Mini USB interface, non-ordinary USB cable) computer control, curve drawing, calibration benchmark test, firmware upgrade, cycle charge and discharge.

Tip: A + V + is connected to the positive battery, A_V_ is connected to the negative battery

Note:

Built-in 24V power module.

About Product Operation Video , Please Contact US.
