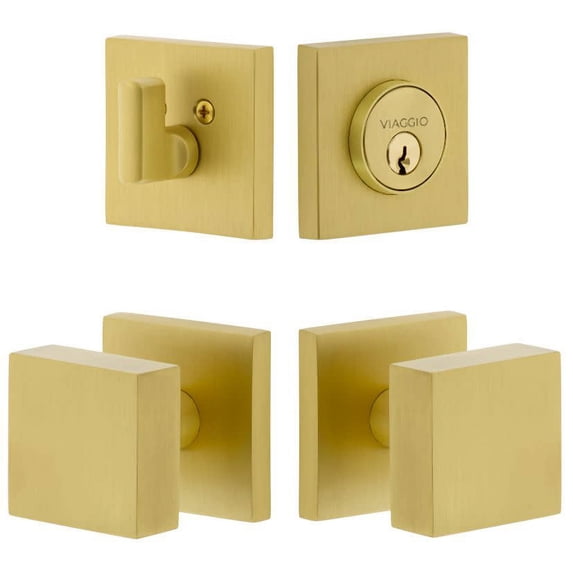

Viaggio 628720 Quadrato Solid Brass Single Cylinder Keyed Entry Door Knob Set And Deadbolt

Viaggio hardware is made in Europe and hand-assembled in the US. Each piece is created from solid-forged brass, and then precision polished for the sleekest looks. All Viaggio Hardware comes standard with luxury concealed screw mechanism for a clean installation, leaving no visible fasteners.

The precise lines of the Quadrato Entry Set provide a crisp display of modern simplicity. With meticulous corners and mathematical symmetry, the hammered texture adds keen visual interest to this square set. Add the Circolo brass knob, with its pure cylindrical shape, to impart a simple yet elegant finishing touch. All Viaggio products are made with longevity and durability in mind so they can be enjoyed for generations to come.

Combo Pack: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key in the deadbolt and can be locked and unlocked from the interior using the thumbturn. This entry set would be ideal for the front entry of a home.

Features:

• Entry sets are only keyed at the deadbolt
Made from solid forged brass and precision polished for superior quality
• Features concealed screw mechanism (CSM) for clean, uncomplicated style
• Easy to install and works with modern pre-drilled doors
• 1 inch hardened steel bolt for security
• Schlage C keyway
• Manufactured in Europe, assembled in the
• Lifetime Mechanical Warranty
• Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Includes:

• Two (2) knob and plate assemblies – one (1) preassembled
• One (1) strikeplate
• One (1) faceplate
• One (1) latch
• One (1) plastic anti-rotation block
• One (1) CSM subplate
• One (1) CSM spindle
• One (1) brass bushing
• One (1) plastic bushing tool
• One (1) nylon washer
• One (1) hex wrench
• One (1) cylinder escutcheon
• One (1) thumb turn escutcheon
• One (1) cylinder
• One (1) 6.5mm Spin Ring
• One (1) DB strikeplate with One (1) DB faceplate
• One (1) DB latch
• Mounting hardware

Specifications:

• Backset: 2-3/8"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible Left or Right
• Handle Width: 2-1/8"
• Handle Height: 2-1/8"
• Handle Projection: 2-9/16"
• Trim Width: 2-1/2"
• Trim Height: 2-1/2"
• Product Weight: 4.25 lbs
• Latch Faceplate: Square Corner
