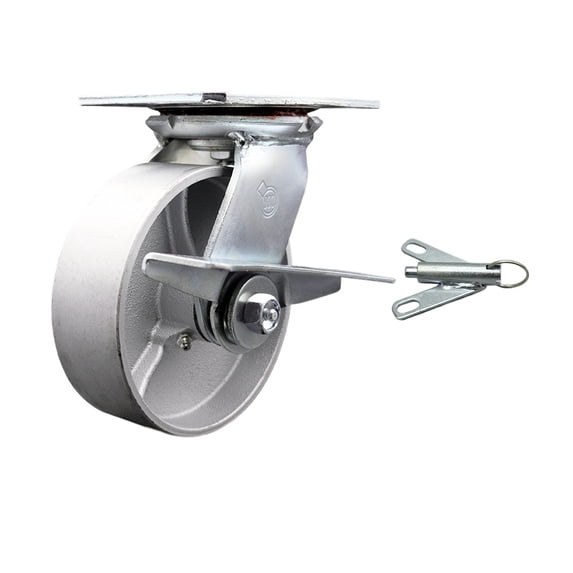

Hero image 0 of 6 Inch Semi Steel Caster with Roller Bearing and Brake/Swivel Lock SCC, 0 of 2

6 Inch Semi Steel Caster with Roller Bearing and Brake/Swivel Lock SCC

(No ratings yet)

Key item features

These Service Caster Series #35 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
Weight capacity ranges from 1000 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Specs

Size
6" Wheel
Caster type
Swivel Casters
Material
Semi Steel Cast Iron
Features
Swivel
Brand
Service Caster
Rec. use
Commercial

Current price is $66.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Fri, Jun 12

Sold and shipped by Service Caster CorporationPro Seller

4.642857142857143 stars out of 5, based on 14 seller reviews(4.6)

Report an issue with this seller

Free 30-day returns

More seller options (2)

Starting from $71.78

About this item

Product details

Listing is for one (1) Service Caster Series #35 swivel caster with a 6" diameter by 2" wide semi steel cast iron wheel with a side lock brake & bolt on swivel lock capable of supporting 1,200 lbs./caster. When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 35 semi steel cast iron wheel casters. The Service Caster Series #35 is ideal for material handling, carts, equipment, and shop projects. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250 lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with a machined hub, wheel face and double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.

These Service Caster Series #35 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
Weight capacity ranges from 1000 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
