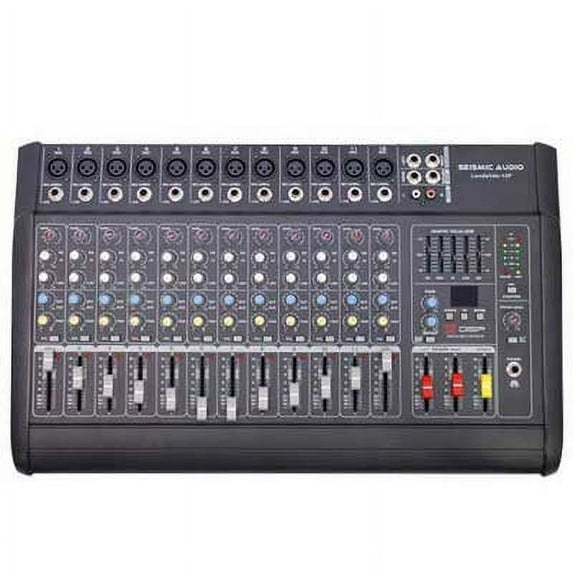

Seismic Audio LandSlide 12P, 12 Channel DSP Professional Powered Mixer

• Model: LandSlide-12P
• 12 Channel DSP Professional Powered Mixer
• 12 discrete input channels with gold plated XLR and balanced 1/4"
• Power Rating:
• 8 ohm : 2 Channel x 150 Watts RMS
• 4 ohm : 2 Channel x 250 Watts RMS
• Overload Protection
• Ultra low noise discrete mic pre-amp with +48 V phantom power
• Balanced inputs for highest signal integrity
• Ultra musical 2-band EQ on all channels
• Peak LED on each input channel
• Aux bus for external effect and monitoring
• Simulate effect (16 DSP)
• RCA input / output
• Highly accurate 5 segment bargraph meters
• Separate master mix outputs
• 5 Band Graphic EQ
• 2 SpeakOn per channel output (4 total SpeakOn)

Specifications

Mono Inputs

• Mic Input B: Electronically balanced discrete input configurations
• Bandwidth: 10 Hz to 60 kHz +/- 3 db
• Distortion (THD&N): 0.01% at +4 dbu, 1kHz, Bandwidth 80 kHz
• Mic E.I.N. (22 Hz - 22 kHz):
  • -129.5 dBu, 150 ohm source
  • -117.3 dBqp, 150 ohm source
  • -132.0 dBu, input shorted
  • -122.0 dBqp, input shorted

• TRIM range: +10 dBu to 60 db
• Line Input: Electronically balanced
• Line Level Range: +10dBu to 4 dBu

Equalization

• Hi: 12 kHz +/- 15 dB
• Low: 80 Hz +/- 15 dB

Master Mix Section

• Max Output: +22 dBu balanced
• Aux Send Max Out: +22 dBu unbalanced
• Control Room Out: +22 dBu unbalanced
• Signal to noise ratio: +112 dB all channels at unity gain
