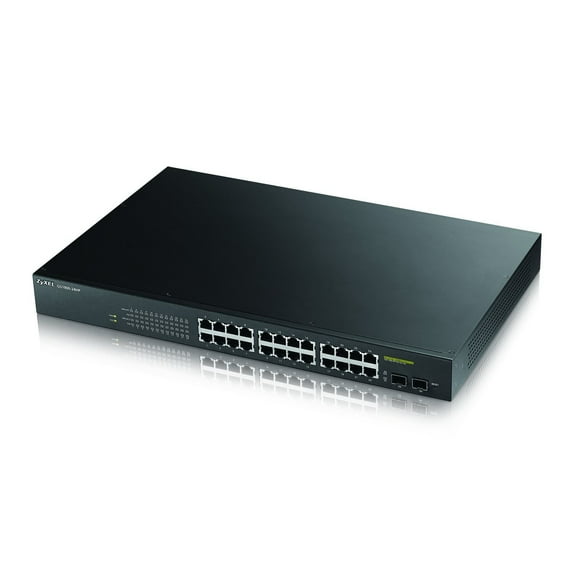

Hero image 0 of Zyxel GS1900-24HP - 24 Port GbE PoE+ L2 Web Managed Rackmount Switch w/2 SFP (170W), 0 of 3

Zyxel GS1900-24HP - 24 Port GbE PoE+ L2 Web Managed Rackmount Switch w/2 SFP (170W)

(No ratings yet)

Key item features

Standard Compliance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab (1000BASE-T) Ethernet IEEE 802.3x flow control IEEE 802.3az EEE support IEEE 802.1p CoS support IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP) IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure Store and forward Auto MDI/MID-X
Resilience and Availability IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.3ad LACP Dual configuration files Dual images
Traffic Management and QoS Port-based VLAN IEEE 802.1Q VLAN tagging IEEE 802.3ad LACP Guest VLAN Voice VLAN Storm control IEEE 802.1p priority queues per port IEEE 802.1p Queuing method (scheduler) Input priority mapping Rate limiting per port (ingress/egress) IEEE 802.3x flow control
Class of Service (CoS) IEEE 802.1p class of service (SPQ, WRR) Port-based CoS IP TOS precedence
Security IEEE 802.1x Port security Layer 2 MAC filtering BPDU guard Static MAC forwarding RADIUS TACACS+ SSL Management VLAN CPU defense engine DoS prevention
Layer 2 Multicast IGMP snooping (v1, v2, v3)
IPv6 IPv6 over Ethernet (RFC 2464) Dual-stack (RFC 4213) ICMPv6 (RFC 4884) Neighbor discovery (RFC 4861) Auto configuration Static IPv6 address and prefix length Static IPv6 default gateway IPv6 duplicate address detection
Discovery IEEE 802.1 AB LLDP LLDP-MED
Network Management SNMP v1, v2, v3 RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog
MIB RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Private MIB
Certifications EMC CE, FCC, C-Tick, Class A (GS1900-24/24HP/48/48HP) CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) BSMI CNS13438 Safety LVD EN60950-1 BSMI CNS14336-1 CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) RoHS compliant
ZyXEL One Network ZON Utility Discovery of ZyXEL switches, APs and gateways Centralized and batch configurations IP configuration IP renew New Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with ZyXEL AP Configurator (ZAC)
10/100/1000 BASE-T, PoE, fixed 24 SFP 100/1000 Mbps 2
Switching capacity (Gbps) 52
Switch forwarding rate (Mpps) 39
Packet buffer (byte) 525 K
MAC address 8 K
Jumbo frame (byte) 9 K
Input voltage of AC 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 215 PoE power budget (watt) 170
Item Dimensions (WxDxH) (mm/in.) 440 x 310 x 45/17.32 x 12.20 x 1.77
Item Weight (kg/lb.) 4.03/8.88
Packing Dimensions (WxDxH) (mm/in.) 583 x 451 x 98/22.95 x 17.76 x 3.86
Packing Weight (kg/lb.) 5.1/11.24
Included accessories Power cord, Rack mounting kit
Operating temperature 0°C to 50°C/32°F to 122°F Storage temperature -40°C to 70°C/-40°F to 158°F Operating humidity 10% to 95% (non-condensing)

Specs

Brand
ZyXEL
Network switch type
Managed Switch
Number of ports
24
Transfer rate
1000 Mbps
Form factor
Rackmount, Desktop
Model name
GS1900-24HP

Current price is $306.55

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

The ZyXEL GS1900 Series of 8/10/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more flexibility and connectivity. The 1900 Series consists of nine (9) models?the GS1900-8, GS1900-8HP, GS1900-10HP, GS1900- 16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with power-saving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/10HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.

Standard Compliance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab (1000BASE-T) Ethernet IEEE 802.3x flow control IEEE 802.3az EEE support IEEE 802.1p CoS support IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP) IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure Store and forward Auto MDI/MID-X
Resilience and Availability IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.3ad LACP Dual configuration files Dual images
Traffic Management and QoS Port-based VLAN IEEE 802.1Q VLAN tagging IEEE 802.3ad LACP Guest VLAN Voice VLAN Storm control IEEE 802.1p priority queues per port IEEE 802.1p Queuing method (scheduler) Input priority mapping Rate limiting per port (ingress/egress) IEEE 802.3x flow control
Class of Service (CoS) IEEE 802.1p class of service (SPQ, WRR) Port-based CoS IP TOS precedence
Security IEEE 802.1x Port security Layer 2 MAC filtering BPDU guard Static MAC forwarding RADIUS TACACS+ SSL Management VLAN CPU defense engine DoS prevention
Layer 2 Multicast IGMP snooping (v1, v2, v3)
IPv6 IPv6 over Ethernet (RFC 2464) Dual-stack (RFC 4213) ICMPv6 (RFC 4884) Neighbor discovery (RFC 4861) Auto configuration Static IPv6 address and prefix length Static IPv6 default gateway IPv6 duplicate address detection
Discovery IEEE 802.1 AB LLDP LLDP-MED
Network Management SNMP v1, v2, v3 RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog
MIB RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Private MIB
Certifications EMC CE, FCC, C-Tick, Class A (GS1900-24/24HP/48/48HP) CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) BSMI CNS13438 Safety LVD EN60950-1 BSMI CNS14336-1 CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) RoHS compliant
ZyXEL One Network ZON Utility Discovery of ZyXEL switches, APs and gateways Centralized and batch configurations IP configuration IP renew New Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with ZyXEL AP Configurator (ZAC)
10/100/1000 BASE-T, PoE, fixed 24 SFP 100/1000 Mbps 2
Switching capacity (Gbps) 52
Switch forwarding rate (Mpps) 39
Packet buffer (byte) 525 K
MAC address 8 K
Jumbo frame (byte) 9 K
Input voltage of AC 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 215 PoE power budget (watt) 170
Item Dimensions (WxDxH) (mm/in.) 440 x 310 x 45/17.32 x 12.20 x 1.77
Item Weight (kg/lb.) 4.03/8.88
Packing Dimensions (WxDxH) (mm/in.) 583 x 451 x 98/22.95 x 17.76 x 3.86
Packing Weight (kg/lb.) 5.1/11.24
Included accessories Power cord, Rack mounting kit
Operating temperature 0°C to 50°C/32°F to 122°F Storage temperature -40°C to 70°C/-40°F to 158°F Operating humidity 10% to 95% (non-condensing)
