Power Tool Angle Grinder Switch Brushless Electric Wrench Drive Control Board

Features:

- brand new and high quality
- Made of high quality material,
- This product is suitable for 60A brushless electric wrench

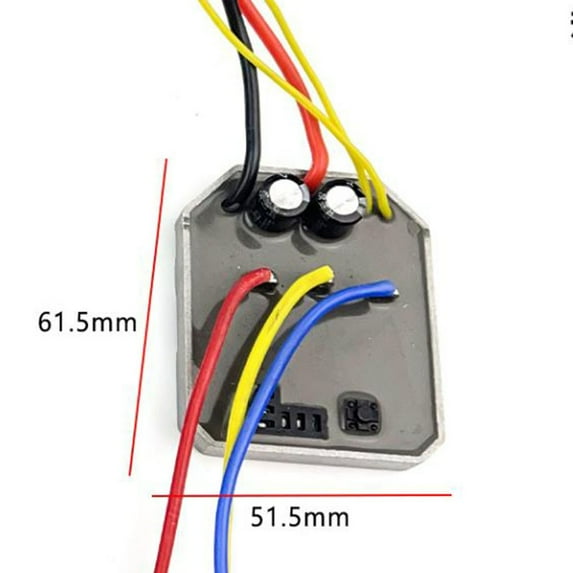

- Brushless angle grinder drive plate polishing machine total control panel size 5.2*6.2CM
- for brushless and non-inductive angle grinder drive control board.
- Control board drive voltage: 18V (5 strings of lithium batteries, fully charged 21V), power 300W.
- You can use battery packs marked 48V, 68V, 88V, 98V, 128VF or TV which are actually 18V.
- Before the test machine, you must connect the wires---fix the motor---install the casing---tighten the screws---make sure the square shaft of the machine head can rotate easily without getting stuck---connect the power---press the speed control Switch so there are no gaps in the case! Otherwise, there may be a beeping alarm!
- To prevent damage to the motherboard, please operate as required.

Specification:

- Name: electric wrench motherboard
- Power supply voltage: 20V
- Models: 4 wires-no speed adjustment, 7 wires-no speed adjustment, 4 wires-adjustable speed, 7 wires-speed adjustment (optional)
- Angle grinder model: other
- Weight: 20g
- Power cord length: 10cm
- Rated voltage range: single-phase electricity 220V


Package includes:

1* Electric wrench motherboard (optional)

Notes:

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
