1Set Flash RC LED Light Kit 8 LED Lighting System For RC Helicopter Airplane WA

Product description:

4 Alaways Light 4 Strobe Light RC Airplane Led Lights

Make RC Airplane Cooler- 8 LED RC light system designed according to navigation light standard, make your airplane more shining, more realistic.

Easy to Install and Operate, rc airplane light kit can be controlled by any switched channel on the transmitter/ receiver for mode selection.

Nice Light in Dark Night - Multicopter rc airplane lighting set would be easier for knowing its orientation when dusk flying.

Useful RC Airplane Accessories - 8 LED RC lights Set could be widely applied to electric aircraft, helicopter and airplane.

No Need for Separate Battery- Receiver powered.

Features:

Input Voltage: 4-6V

Working Current: 30 mA

Totol LED Light Quantity: 8 pcs

LED light Wire Length: 590 mm/23.23 Inch /PC

Dimensions (Control Box): 35x22x9 mm/ 1.38x 0.87x 0.35 Inch

Control Board Connection Wire: 195 mm/ 7.68 Inch

Installation:

1. The flightled system consists of the main control board, 2x Always-Bright White light, 1x Always-Bright Green light, 1x Always-Bright Red light, 2x White Strobe and 2x Slow-flash Red light.

2. Please set up the lights according to the dispalyed picture, so it will act like the true plan lights. You can also fix the lights on the different position as you like.

3. Please connect the LED leads with the main control board and then connect to the power supply only after fixing ali the wires.

4. Put the main control board in the cabin and fix the flight lights and wires before flying.

5. The power of the lights can be either from the individual battery pack 4v-6v or your receiver battery.

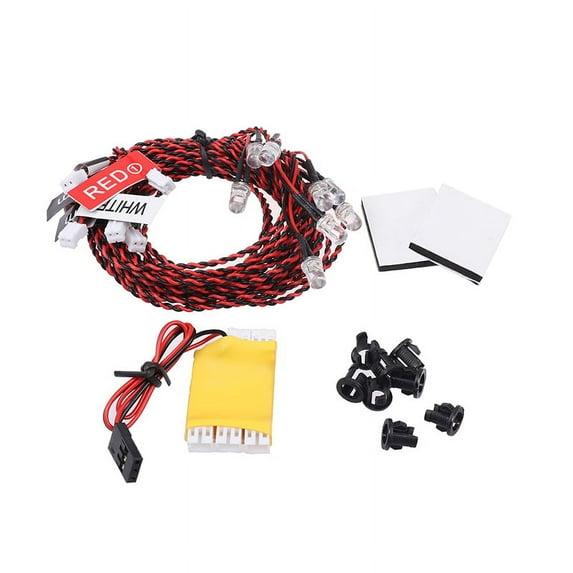

Package Includes:

1x main control board

2x Always-Bright White light

1x Always-Bright Green light

1x Always-Bright Red Light

2x White Strobe light

2x Slow-flash Red light
