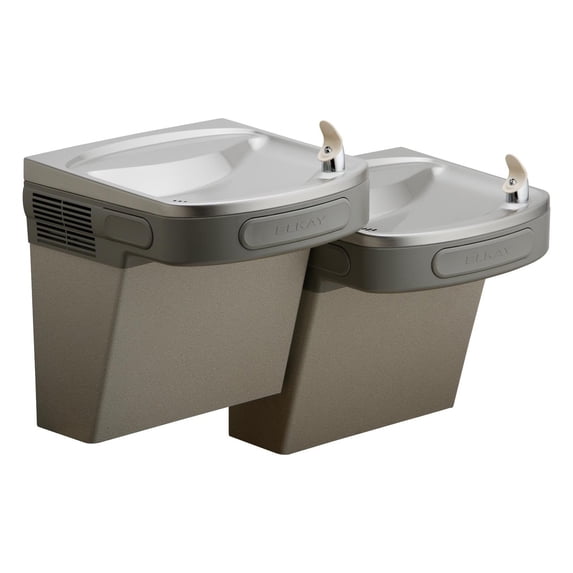

Elkay LZSTLG8LC Versatile Water Cooler Wall Mount Bi-Level GreenSpec ADA, Filtered Gray Granite

Product Features:

• Covered under Elkay's 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
• Bi-Level drinking fountain with self contained ADA cooler
• Electric refrigeration is a combination tube-tank running single phase
• Capacity of 50℉ drinking water, based upon 80℉ inlet water and 90℉ ambient
• Integrated Silver Ion Anti-microbial Protection in key areas
• Easy-Touch push-bar controls on front, left and right sides
• Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure

Construction:

• Frame - Galvanized structural steel chassis supports refrigeration system and fastens to wall
• Contoured basin offers large area to minimize splashing when in use
• Vandal-Resistant bubbler is a heavy-duty chrome plated construction
• Stainless Steel Basin - One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
• Upper Shroud - Contoured shock-absorbing, provides additional protection against accidental injury. No exposed fasteners
• Lower Shroud - One piece easy to remove and replace. Allows access to internal components from three sides

Cooling System:

• Motor Compressor - Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
• Condenser - Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
• Cooling Unit - Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
• Refrigerant Control - Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
• Temperature Control - Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements

Product Specifications:

• Base Cooling Capacity (GPH): 8
• Rated Watts: 360
• Full Load Amps: 3.2
• Fountain Type: Refrigerated
• Shipping Weight: 75
• Voltage: 115
• Height: 25-5/16" (measured from lowest rim to top rim of fixture)
• Length: 36-3/4" (measured from most left to most right rim of fixture)
• Depth: 19" (measured from back to front of fixture)
• Glass Filler: No
• Vandal Resistant Bubbler: Yes
