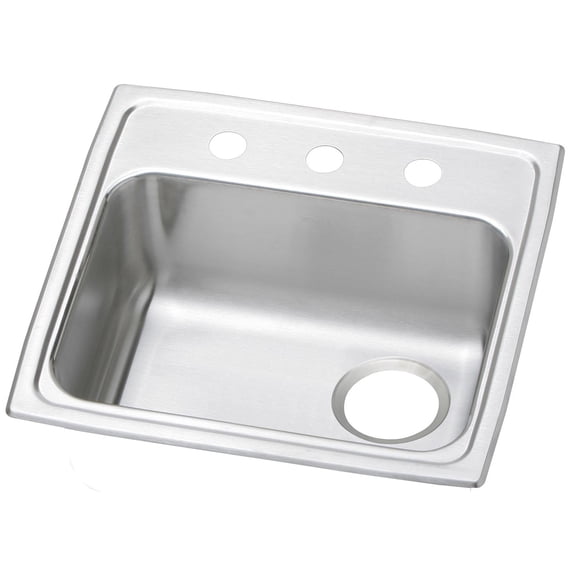

Elkay PSRADQ191955R1 Celebrity Stainless Steel 19-1/2" x 19" x 5-1/2", 1-Bowl Top Mount ADA Sink

Elkay has been a trusted name in stainless steel since 1920. Through the years, our engineering and manufacturing methods have continued to evolve. Our expertise in forming, welding, trimming and polishing stainless steel have helped us to set the industry standard. We are proud to be America's No. 1 selling kitchen sink company.

Product Features

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• QUICK-CLIP MOUNTING SYSTEM: Quickly and securely install sink from above the counter with a series of clips that attach to laminate countertops.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• MADE IN THE USA: This Elkay product is proudly made in the USA.
• DRAIN OPENING: Sink drain opening measures 3-1/2".
• CABINET SIZE: Minimum cabinet size for this sink is 24".
• Quick-Clip Mounting System

Technical Specifications

• Length: 19.5"; Width: 19"; Height: 5.5"
• Sink Depth: 5.5"
• Style: Traditional
• Material: Stainless Steel
• Finish: Brilliant Satin
• Intended Use: Classroom
• ADA: Yes
• Installation Type: Top Mount
• Mounting Hardware Included: Included for 3/4" (19mm) countertop
• Template Included: No
• Number of Bowls: 1
• Bowl 1 Length: 16"; Bowl 1 Width: 13.5"; Bowl 1 Depth: 5.375"
• Drain Size (Bowl 1): 3.5"
• Soundproofing: Bottom only pads
• Faucet Hole: 1
• Minimum Cabinet Size: 24"
• Countertop Cutout: 18-7/8" x 18-3/8" (479mm x 467mm) with 1-1/2" (38mm) corner radius
• Optional Soap Dispenser: LKGT1054
• Optional Cutting Board: CB1613, CB1713, CBS1316
• Optional Rinsing Basket: LKWRB1316SS, LKWERBSS
• Optional Drain: LK99; Optional Faucet: LKGT1041, LKGT2041
• Gauge: 20
• Base Material: 304
• Code Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)

Downloads & Documentation

• Product Warranty
• Specifications Sheet
• Installation Guide

Product Video
