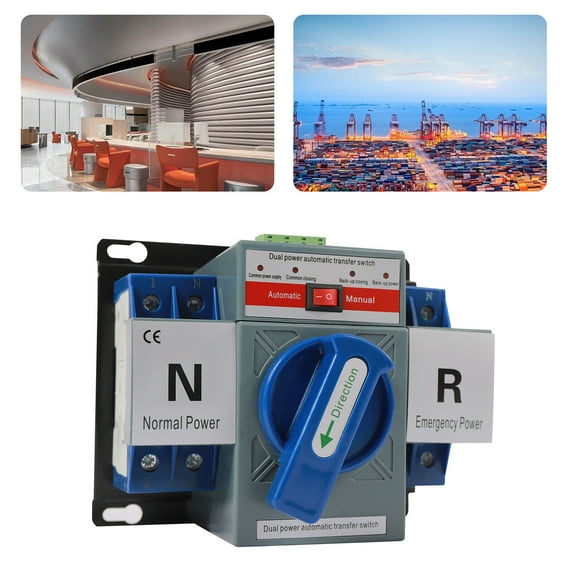

110V 2P 63A Dual Power Automatic Transfer Switches Self Cast Conversion Switch

Flkoendmall 110V 2P 63A Dual Power Automatic Transfer Switches Self Cast Conversion Switch

Power failure not only affects life but also destroys good mood. Our dual-power automatic transfer switch can help you solve this problem. Made of plastic and red copper, this sturdy product has strong electrical conductivity, ensuring that you can use it for a long time. The fast conversion between normal and standby power supplies allows you to live a more convenient and comfortable life without worrying about power failure.

Key Features

Build to Last: High-quality plastic and red copper make the product have strong electrical conductivity, solid, and durable, so it can keep practical without frequent replacement.

Good Performance: This switch can be used to detect whether the power supply is normal, achieve the conversion between normal power supply and standby power supply in a short time(≤2s), and ensure your normal use in the event of a power failure.

Solid Back Plate: The enlarged back plate with 4 mounting holes increases the contact area with the wall, making it more secure to hang on the wall.

Round Corners: Compared with traditional square corners, an arc design without a burr can better care for your skin.

Application

It is suitable for AC 50HZ/60HZ, rated voltage 110V, rated current below 63A (2-wire)- live wire, a neutral wire, dual power grid, etc. The normal power source is municipal power, while the standby power source can be solar power generation, street lamp power, battery power, or any one of the AC 110V power sources. It can be widely used in homes, hotels, schools, restaurants, banks, hospitals, shopping malls, and other places, and is suitable for installation below 6561.68ft in altitude.

Specification

Material: Plastic, Red Copper

Model: GCQ2-63/2

Rated Current: 63A

Pole: 2P

Color: Blue

Style: Modern

Shapes: Rectangular

Number of Items: 1

Mount Type: Horizontal or Vertical

Ambient Temperature: 5-40°C/41-104℉

Installation Site: Within 2000m/6561.68ft in Altitude

Type of Installation: Screw

ATS Level: CB level

Use Level: AC-33iB

Conversion Time: ≤2S

Conversion Mode: Self Cast

Display Function: Indicator Light Display

Hole: M6

Voltage: 110V

Frequency: 50/60Hz

Operation Mode: Automatic and Manual

Part Assembly: G

Final Assembly: 06

Calibration: S

Gross Weight: 1.15kg/2.54lbs

Net Weight: 1kg/2.2lbs

Package Size: 19*18.5*15cm/7.48*7.28*5.91inch

Product Size: 15*13.5cm/5.91*5.31inch

Installation Dimension: 12.8*11.8cm/5.04*4.65inch

Package Included

1*Dual-power Automatic Transfer Switch

1*English Manual

Notes

Please strictly follow the instructions and pay attention to the safety precautions inside.

This product belongs to electrical maintenance and installation, so it is important to ensure that the operator holds electrician qualification and takes necessary power off and insulation protection measures.

Please note that the switch cannot turn the generator on or off.

When the normal power supply and standby power supply are powered, the switch will give priority to using the normal power supply.

The normal/standby power supply should be an AC 110V power supply. If it is a DC or low-voltage power supply, you need to use an inverter to convert it into an AC 110V power supply

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
