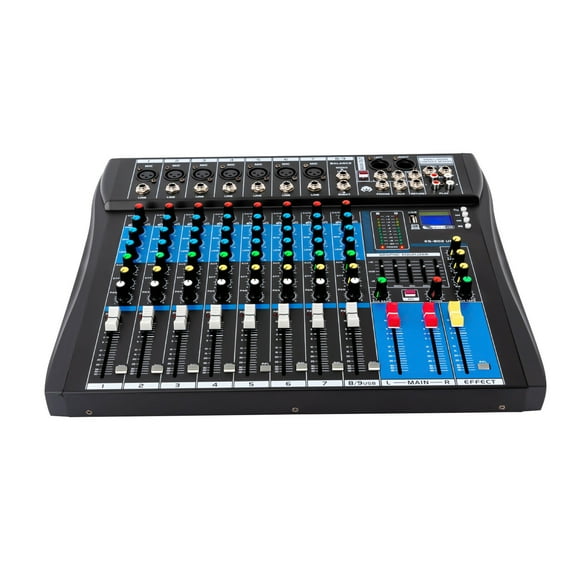

Professional Sound Audio Device 8-Channel Stereo Mixer Amplifier Usb Bluetooth

Professional Sound Audio Device 8-channel Stereo Mixer Amplifier Usb Bluetooth

Please Note:

Please Read the User Manual Carefully Before Use and Pay Special Attention to the Safety Precautions Included.

Please Allow the Slight Color Difference Caused by the Shooting Light and 1-3cm Error Due to Manual Measurement. Please Make Sure You Do Not Mind Before You Order.

Frequency Response:

Microphone/Line Input to Any Output Terminal ± 1.5db, 20hz~20khz

Total Harmonic Distortion+Noise:

Microphone Sensitivity - 30db, Mixing Output+14dbu<0.02% @ 1khz

Noise:

Microphone Input Equivalent Noise Ein (Maximum Gain) - 127db (Original Impedance 150 Ω)

Aux, Mix and Main Control Are at 0db (the Pusher Is at the Lower End) V<- 84dbu

Cross Talk Between Channels (1khz):

Channel Mute>90db

Pusher off (Reference Mark+10)>90db

Aux Transmitting Port Closed>83db

Eq (Mono Onput)

Q(Mf): 1.5

Low (Low Frequency): 80hz ± 15db

Mid (Sweep Frequency): 150hz-3.5khz, ± 15db

High (High Frequency): 12khz ± 15db

Eq (Stereo Input)

Q(Mf): 0.8

Low (Low Frequency): 80hz ± 15db

Mid: 720hz, ± 15db

High (High Frequency): 12khz ± 15db

Power Consumption Ac Power Supply: ＜ 35w

Temperature Range: 5 °C+40 °C

Input/Output Level, Input/Output Impedance

Mic Input Maximum+15dbu, 2k Ω

Line Input Maximum+30dbu, 10k Ω

Stereo Input Maximum+30dbu, 65k Ω, 35k Ω

Output Impedance - 150 Ω, 75 Ω

Gross Weight: 4.6kg/10.14lbs

Net Weight: 4.2kg/9.25lbs

Package Size: 41*35*5cm/16.14*13.77*1.96in

Product Size: 38*31*3.5cm/14.96*12.2*1.38in

Package Included

1*Mixer

1*Power Adapter

1*Chinese and English Manual
