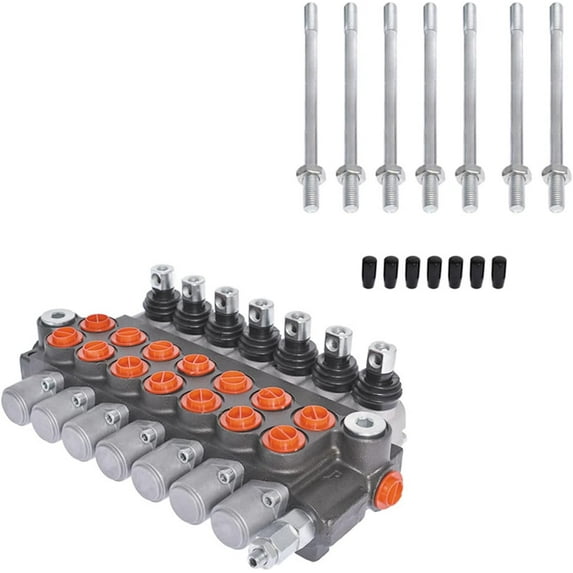

waltyotur Hydraulic Directional Control Valve 7 Spool 11 GPM SAE Ports Hydraulic Valve 3625 PSI for Small Tractors Tractors Loaders Log Splitters

7 Spool 11gpm Hydraulic Directional Control Valve

Specification:
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Preset Pressure Relief: 2610 PSI
Flow Rating: 11 GPM (40 l/min)
A & B Work Ports: 8 SAE O-Ring (3/4â€-16) Thread
Inlet Port: 10 SAE O-Ring (7/8â€-14) Thread
Outlet Port: 10 SAE O-Ring (7/8â€-14) Thread
2 – 5/16†Mounting Holes

Features:
-7 Spool valve with compact design allows for installations in tight areas
-All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
-Used for open center systems (Pump to Tank Flow) - closed center option available
-Anti-drop load checks on each spool
-Precision ground and hard chrome-plated spools assure a long life
-High-tensile strength cast iron monoblock construction
-SAE O-Ring ports ensure solid seal and prevent blockages
-Capable of Closed Center or Power Beyond (conversion plug required)
-Vertical or horizontal handle mount
-Adjustable Relief Valve Range: 1500 to 3625 PSI
-Used as motor or single-acting spool possible (8 SAE port plug required)

Package Included:
1 x 7 Spool Hydraulic Directional Control Valve
