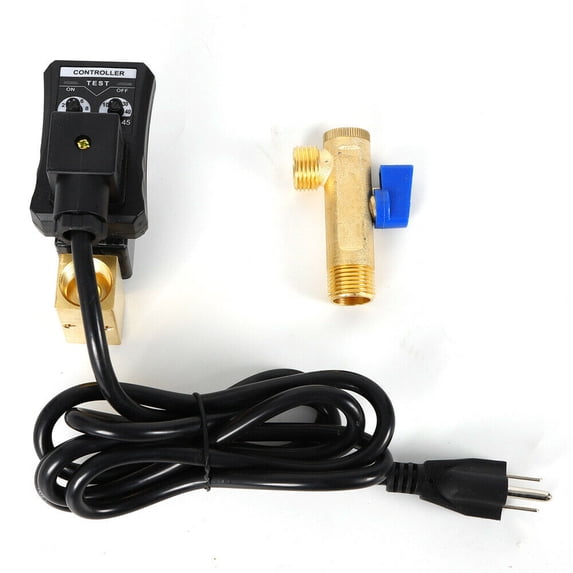

ANQIDI 1/2" Auto Drain Valve Timed Tank Drain Condensate Valve for Compressor Air Tank + Plug 110V

Product Description:

Specification:

Voltage: Ac110V 50Hz

Voltage Range: 10%

Time Interval ( off ): 0.5--45 Minutes (Adjustable)

Discharge Time ( on ): 0.5--10 Seconds (Adjustable)

Manual Test Button: Yes( Micro Switch )

The Current Consumption: Max 4ma

Protection Grade: Ip65

Shell Material: Flame Retardant Abs Plastic

Indicator Lamp: Led Indicating Power on / off

Type: Two-way Direct-acting Valve

Flow Aperture: 5 Mm/ 0.2 inch

In / out Port Size: 1/2"

Maximum Working Pressure: 1.6mpa

Maximum Temperature: 90 °C

Valve Material: Forging Brass

Installation:

1. Clean the Compressed Air System Before Installing

2. Attention to the Direction of the Arrow When the Valve Body; Outlet Do Not Use the Impact of the Hose Does Not Impact

3. the Supply Voltage Must Be the Same As the Drain Valve Voltage; When Using Dc, the Positive Pole Must Be Connected to the Connector "1"

4. the Factory Has Been Connected to the Cable Drain Valve, Fade for the Fire Line L, Blue for the Zero Line N, Yellow and Green Color for the Safe Ground Gnd

5. Always Tighten the Long Screws on the Terminal Box to Prevent the Water from Burning

Timer Setting:

Left Knob to Set the Discharge Time, the Right Knob to Set the Interval Time; the First Discharge Time of 2s, the Interval Time Is 20min, and Then Need to Be Further Adjusted

Package Includes:

1 * Drain Valve with Power Cable
