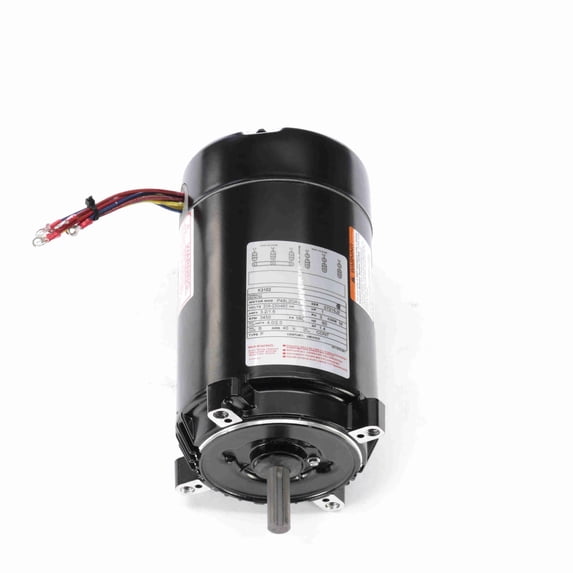

The Pool Supply Shop 1 HP C Face Keyed Shaft 3 Phase Horizontal Pool Pump Motor

With the addition of this functional motor, you will become an expert in pool maintenance. The 3 phase makes it more suitable for household use. With this motor, you don't have to compromise with performance and quality. Product Features: Stainless steel shaft for corrosion protection. Internal junction box. Keyed shaft. Sealed ball bearings. Jet Pump. Open drip proof design allows air to circulate through the windings. Additional Features: Output HP: 1 HP. Frequency: 60 Hz. Current: 3.2/1.6 A. Service factor: 1.4. Output KW: 0.75 kW. Voltage: 208-230/460 V. Speed: 3450 rpm. Poles: 2. Phase: 3. Insulation class: B. Mounting: C face. Drive end bearing: ball. Enclosure: open drip proof. Ambient temperature: 40°C. Frame: 56C. Thermal protection: none. Motor orientation: horizontal. Electrical type: polyphase. Rotation: reversible. Dimensions: Shaft diameter: 0.625". Shaft extension: 0.906". Frame length: 6.31". Material(s): stainless steel. Frame material: rolled steel
