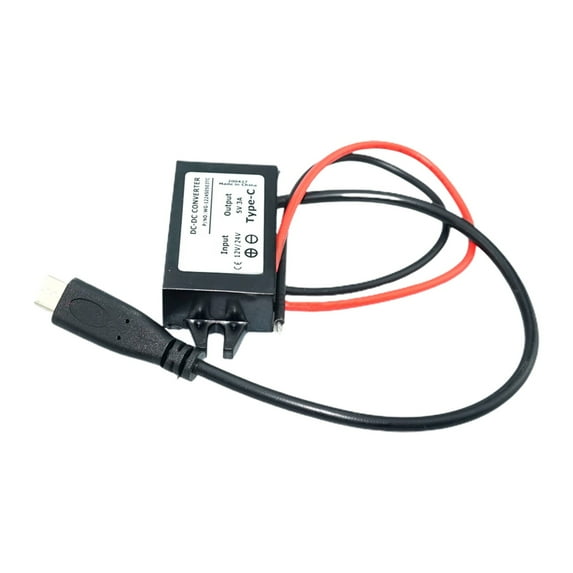

Waterproof 12V/24V to 5V Converter DC-DC StepDown Module Power Adapter USBType-C

Describe
The input terminal of this product has a reverse polarity protection function. The product can automatically identify the charging device mode, and shake hands with the device through the corresponding USB charging protocol, so that it can obtain the maximum charging current and save charging time under the premise of protecting the charging device. The input terminal of the product comes with reverse polarity protection function, waterproof grade IP68, passed CE, ROHS certification, and the efficiency is as high as 91%.
Compatible with most brands of mobile phones, tablet computers, and notebooks; and widely used in car driving recorders, navigators, electronic dogs and other 5V electronic equipment; factory direct sales, wholesalers are welcome to inquire.

Features
*Design according to CE/RoHS
*Full power, high stability output
*Full load aging test
*Built-in charging identification chip, support mobile phone/tablet/computer charging
* Imported high-quality heat-conducting silicone potting, waterproof, dustproof, shockproof
*Aluminum alloy shell, small size, easy to install
* Built-in anti-reverse connection, over-current, low-voltage, over-temperature, short-circuit and other protection functions
*Wide voltage 8-32V input, up to 91% conversion efficiency
*Long service life of more than 100,000 hours

Specification
Model: WG-1224S0503TC
Input rated voltage: 12V/24V DC
Input voltage range: 8-32V DC
Conversion efficiency: 91%
Output voltage: 5V DC
Output current: ЗА
Output power: 15W
Voltage adjustment rate: <1%
Load regulation: 2< %
Ripple & Noise: 30mVp-p
No-load loss: 0.15W
Working temperature: -35℃ ~ +80℃
Waterproof grade: IP68
Size: 63*27*14mm
Weight: 45g
Input wiring type: wire gauge 20AWG (red positive, black negative)
Output wiring type: Type-C USB
Packing method: anti-static bag packing
Heat dissipation method: natural heat dissipation of the shell

Packing list
1*power module converter

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
