Goulds WS3012D3, Model 3888D3, WS_D3 Series, Sewage Pump, 3 HP, 230 Volts, 1 Phase, 400 GPM Max

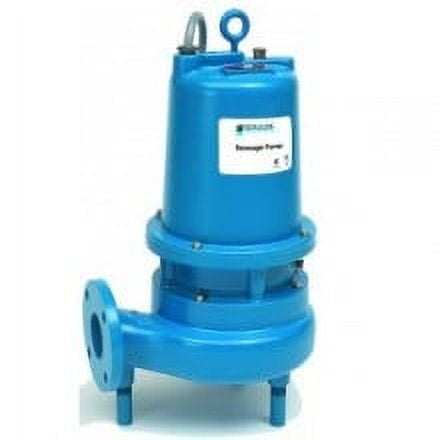

Goulds WS3012D3 Submersible Sewage Pump

This sewage pump is designed for use on guide rail systems and base elbow disconnect systems fitted with vertical 125# ANSI flanges for horizontal discharge. It is capable of handling sewage containing non-abrasive 2-1/2 inch maximum solids.

Specifications:

• Series: WS_D3 Series
• Model: 3888D3
• Type: Sewage Pump
• Motor Power: 3 HP
• Voltage: 230 Volts, 1 Phase
• Discharge Connection: 3" Flanged Horizontal
• Maximum Flow Rate: 400 GPM
• Maximum Head: 53 ft
• Power Cord Length: 20 ft
• Material:
       • Impeller: Cast Iron
       • Casing: Cast Iron
       • Shaft: 300 Series Stainless Steel
       • Fasteners: 300 Series Stainless Steel
• Seal Type: Dual Mechanical Seal with Silicon Carbide vs. Silicon Carbide Outer Seal, Ceramic vs. Carbon Inner Seal, BUNA-N Elastomers

Applications:

• Sewage Systems
• Flood and Pollution Control
• Dewatering/Effluent
• Farms
• Hospitals
• Trailer Courts
• Motels
