Larson Boat Trolling Motor Panel 5766617 | w/ Harnesses 12/24V (3PC Kit)

Boat part number 1100270 is a new 3-piece dash panel kit for Larson Boats, part number 5766617 . Manufacturer unavailable, part number K-050-267 .

Kit includes the following:

• (1) Trolling Motor Panel | 12/24V | P/N: D-050-525
• (1) Harness Assembly | 12/24V | P/N: H-050-379
• (1) Red Cable | 2' L | (2) 3/8" ID Terminal Ring Lugs

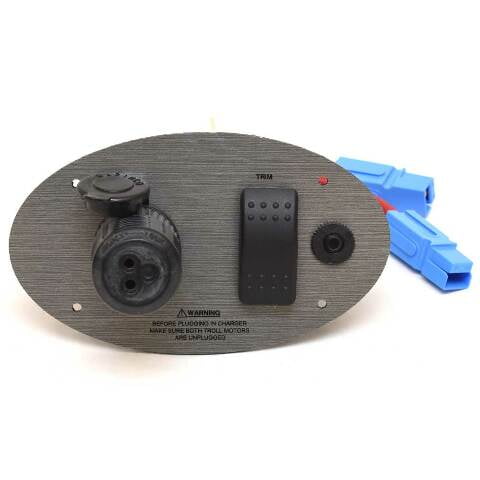

Trolling Motor Panel
This trolling motor panel is constructed out of brushed silver colored plastic.

• Overall Dimensions: 6 1/2" L x 3 3/4" H
• Mounts: (4) 3/16" Dia. Holes

Features the following:

• (1) Trolling Motor Receptacle w/ Plug | 3-Spade
• (1) Trim | Rocker Switch | Momentary On/Off/Momentary On
• (1) Push-to-Reset Breaker Switch

It has the following connections:

• (2) Single Spade Female
• (2) Single Pin Female
• (1) Single Pin Male

Harness Assembly
This harness assembly features 6AWG battery cable that measures approximately 20' L overall. Features (1) 40A breaker, (2) single female spade, (1) 7/16" ID terminal lug, and (1) 3/8" ID terminal lug connections.

Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.

Specifications:

• Boat Manufacturer: Larson
• Part Number: 5766617
• Part Manufacturer: Unavailable
• Part Number: K-050-267
• Material: Plastic
• Color: Silver
• Finish: Brushed

Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.

Hardware and instruction / installation manual not included.
