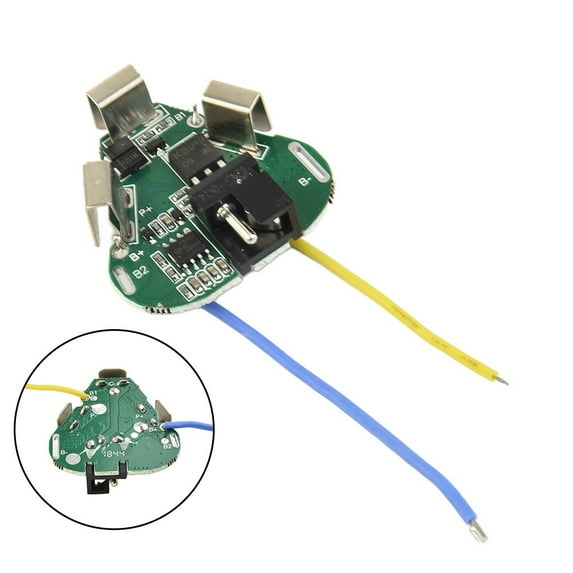

3S 12V DC Electric Tool Hand Lithium Drill Power Li-ion Battery Protection Board

Features:

*Product name: Li-ion Battery Protection Board

*Maximum operating current: 7-9A

*Maximum instantaneous current: 15-20A

*Overcharge range: 4.25±0.05V

*Over disvoltage range: 2.5±0.05V

*Nominal voltage: 12V

*Overcharge Protection delay: 1000mS

*Overdischarge Protection delay: 1000mS

*Overdischarge current 1 delay: 1000mS

*Overdischarge current 2 delay: 125mS

*Short circuit delay: 300uS

*Static continuous working current: 5~15A

*Overdischarge overcurrent protection current: 26A±2A

*Size: (Approx. ) 33.7*36.5mm

*Function: over charge/ over discharge/short circuit/ over current protection

*Quantity: 1pc

Package Included:

1 x Protection Board

Notes:

1.Transition: 1cm=10mm=0.39inch.

2. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

3. Please allow slight manual measurement deviation for the data.
