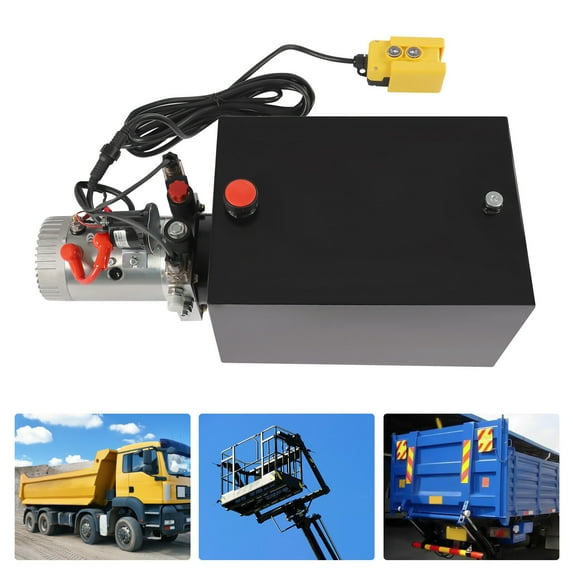

20 Quart Double Acting Hydraulic Pump 12V DC Dump Trailer Control Kit Power Unit
Key item features
- High Performance: It is a double-acting pump, which can be used to lift and lower the hydraulic system to effectively handle a lot of work.
- Safety Protection: It is equipped with an overflow valve, so it will automatically release when overpressure to avoid overpressure damage or excessive pressure, making it safe and reliable to use.
- Compact and Lightweight: It is compact and lightweight(31.96lbs), allowing it to be easily installed on electric basketball stands, snow sweepers, truck tailgates, etc. without being abrupt, and also making it easy to carry and move.
- Easy to Use: This hydraulic electric pump can be used directly after receiving without additional assembly requirements. At the same time, the English operating instructions are also provided in the package to facilitate your operation and installation.
- Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Specs
- Manufacturer part numberGY42J45TNDYB8
- MaterialSteel
- ColorBlack, Silver
How do you want your item?
About this item
Product details
This hydraulic pump is made of solid steel, which is very durable and not easy to crack or damage. It is equipped with a 3kw powerful motor, with a release pressure of up to 16MPa, making it easy to handle various hydraulic lifting operations. As a power unit, it will be the ideal choice for all kinds of remote hydraulic systems!
Application
It is suitable for electric forklift trucks, electric forklift trucks, tipper trucks, electric sanitation trucks cars, lifters, motorbike lifters, car tailboards, electric pallet trucks, lifting platforms, aerial work platforms, electric basketball hoists, boarding bridges, etc.
Specifications
Material: Steel
Color: Black, Silver
Type: Horizontal
Rated Speed: 2850R/MIN
Internal Thread Model: m14 * 1.5
Connector Model Configured: 18 * 1.5
Connector Model Additionally Configured in the Package: 9/16''(SAE6)
Power: 3KW
Voltage: DC12V
Tank Capacity: 18.9L/ 20Qt
Cord Length: 4.5m/14.76ft
Release Pressure: 16MPa
Recommended Hydraulic Oil: ISO VG22-46 (0 ℃ - 70 ℃): ISO VG15 (- 15 ℃ - 0 ℃)
Tolerance Range of Power Supply Voltage: ± 10%
Packing Size: 65*28*28cm/25.59*11.02*11.02in
Product Size: 63*26*30cm/24.8*10.23*11.81in
Gross Weight: 17kg/37.78lbs
Package Included
1* Hydraulic Electric Pump
1* Connector
1.* 4.5-meter Wired Control Handle
1* English User Manual
Key Features
Solid and Durable: The housing is made of high-quality steel, which is solid, wear-resistant, rustproof, and impact-resistant, ensuring a long service life.
Stable and Efficient: The hydraulic electric pump is equipped with a powerful 12V DC motor for stable performance and quick start-up. So, It can provide strong power for hydraulic systems such as car elevators and lifters to achieve short-term lifting, greatly improving working efficiency.
Low Noise: The volume is low when it operates, giving you a quiet and comfortable working environment.
Remote Control: It is equipped with a solid remote control with a 4.5m/14.76ft cable, which allows you to remotely operate the product. Press the button up and down, and it will stop when you release the button.
High-quality Tank: It has a metal fuel tank, which will not crack or leak even under harsh conditions, so you can use it with confidence. Its capacity is 20 quarts, avoiding frequent filling of hydraulic oil.
Notes
The hydraulic oil should be replaced upon working for 100 hours since the initial filling. Subsequently, the hydraulic oil should be replaced once per year/ about 1500 working hours.
The power unit could not filter foreign materials within the hydraulic cylinder, therefore, the interior of the hydraulic cylinder must be kept clean to prevent the ill-function of the control valve. And the pipelines should also keep clean.
The oil filling volume of the oil tank shall be 90% of the capacity, and the oil volume shall not be less than 85%. When starting the operating system for the first time, immediately check whether the oil in the oil tank is sufficient.
Please note that the cleanliness level of hydraulic oil is ISO 4006 (: 99) 18/15 or NAS1638 9~10, and the product oil must pass 10-25 μm The oil filter truck can be used as working oil after filtering.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
