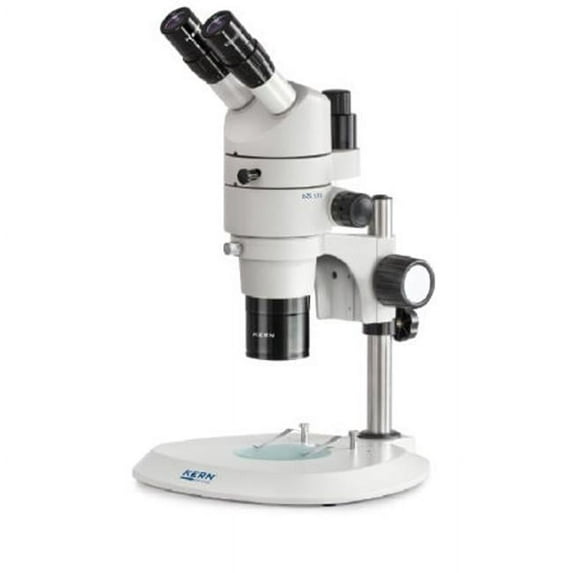

Trinocular Stereo Zoom Microscope

Trinocular Stereo Zoom Microscope

• The devices in the OZS-5 series are special, high-quality stereo zoom microscopes with parallel optics
• An above-average zoom range for demanding analyses
• The parallel optical system is a high-quality optical system and provides excellent images
• The best contrast, colour and depth of field with fatigue-free working
• Refocusing is also only necessary in very few cases when magnifying the zoom
• The exceptionally large, adjustable magnification range
• 8 to 80 Times magnification gives you continuous zoom for the views you need
• As standard, the models of the OZS-5series are trinocular and are therefore equipped
• For connecting a camera for documentation purposes and for quality reports
• These models are particularly flexible due to the modular construction, the pillar stand as well as the powerful
• Longlife LED incident and transmitted illumination which can be integrated as an option
• A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination unit
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope
• A C-mount adapter is required to connect a camera. You can select this adapter from the following model outfit list
• Scope of applicationIn vitro fertilisation, detection of parasites, zoology
• Botany, section, quality control, electronics and semiconductor industry, assembly and repair
• Applications/SamplesSamples with focus on three-dimensional, zoom
• Variable magnification (depth, thickness) insects, seeds, circuit boards, component
• Technical dataOptical system: Parallel optics
• Brightness adjustable (separate)Lens barrel 45 Tilt
• Magnification ratio: 10:1Light distribution
• 50:50 Eye distance: 52.0 - 76.0 mm dioptre compensation both sides

• Tube: Trinocular
• Eyepiece: HWF 10 x 22.0 mm
• Field of View(mm): 27.5 mm - 2.8 mm
• Lens (Zoom): 0.8x - 8x
• Stand: Pillar
• Dimension: 305 x 300 x 510 mm
• Weight: 13 lbs
