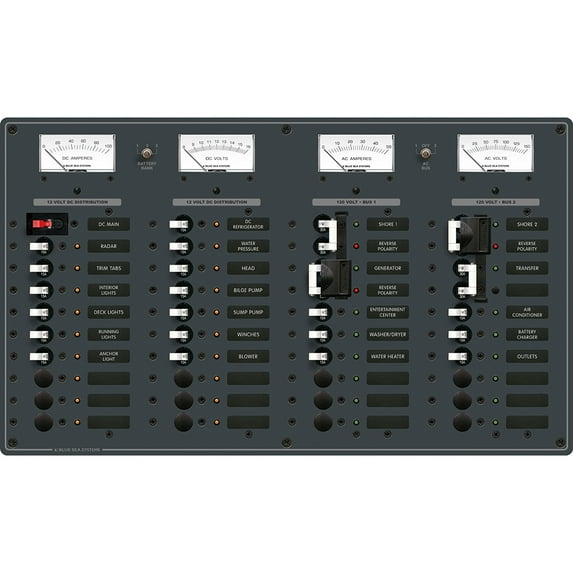

Hero image 0 of Blue Sea 8086 AC 3 Sources +12 Positions / DC Main +19 Position Toggle Circuit Breaker Panel (White Switches), 0 of 1

Blue Sea Systems

Blue Sea 8086 AC 3 Sources +12 Positions / DC Main +19 Position Toggle Circuit Breaker Panel (White Switches)

(No ratings yet)

Key item features

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White SwitchesFeatures:
Includes set of 30 common AC and 30 common DC labels
All AC and DC buses installed, fully pre-wired
Label backlighting pre-installed
All LEDs installed
Maximum panel Amperage
100 Amperes DC
50 Amperes ACAC Features:
Two separate AC load groups with transfer switch to combine into one load group
Switch allows Ammeter and Voltmeter to read either AC load group
Reverse polarity indicators on both AC load groups
Ready for installation of optional 4031 AC Isolation Cover
9353, 0-150 Volt AC Voltmeter
9630, 0-50 Amp AC AmmeterDC Features:
100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
8003, 8-16 Volt DC Voltmeter
8017, 0-100 Amp DC AmmeterSpecifications:
AC Positions: Source Selectors +12
DC Positions: Main +19
120 Volts AC
12 Volts DC
(3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
(1) 100A - (13) 15A DC Circuit Breakers*Combined AC/DC panels require a AC Insulating Cover to meet ABYC StandardsWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Max Breaker Quantity: 12 AC / 19 DC
AC/DC: Both
Voltage: 120v/12v
Box Dimensions: 6"H x 15"W x 23"L WT: 12.5 lbs
UPC: 632085080860Owner's Manual (pdf)

Specs

Amps
100 Amps
Circuit breaker type
Toggle
Number of poles
1
Volts
120 V, 12 V
Brand
Blue Sea Systems
Size
One Size

Current price is $1,629.36

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Wed, May 6

Sold and shipped by Guabi Distribution LLC

4.36 stars out of 5, based on 25 seller reviews(4.4)

Report an issue with this seller

Free 30-day returns

More seller options (3)

Starting from $1,681.94

About this item

Product details

Details : 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches Features: Includes set of 30 common AC and 30 common DC labels, All AC and DC buses installed, fully pre-wired, Label backlighting pre-installed, All LEDs installed, Maximum panel Amperage100 Amperes DC, 50 Amperes ACAC Features: Two separate AC load groups with transfer switch to combin

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White SwitchesFeatures:
Includes set of 30 common AC and 30 common DC labels
All AC and DC buses installed, fully pre-wired
Label backlighting pre-installed
All LEDs installed
Maximum panel Amperage
100 Amperes DC
50 Amperes ACAC Features:
Two separate AC load groups with transfer switch to combine into one load group
Switch allows Ammeter and Voltmeter to read either AC load group
Reverse polarity indicators on both AC load groups
Ready for installation of optional 4031 AC Isolation Cover
9353, 0-150 Volt AC Voltmeter
9630, 0-50 Amp AC AmmeterDC Features:
100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
8003, 8-16 Volt DC Voltmeter
8017, 0-100 Amp DC AmmeterSpecifications:
AC Positions: Source Selectors +12
DC Positions: Main +19
120 Volts AC
12 Volts DC
(3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
(1) 100A - (13) 15A DC Circuit Breakers*Combined AC/DC panels require a AC Insulating Cover to meet ABYC StandardsWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Max Breaker Quantity: 12 AC / 19 DC
AC/DC: Both
Voltage: 120v/12v
Box Dimensions: 6"H x 15"W x 23"L WT: 12.5 lbs
UPC: 632085080860Owner's Manual (pdf)

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Amps

100 Amps

Circuit breaker type

Toggle

Number of poles

Volts

120 V, 12 V

Warranty

Warranty information

One year product warranty
