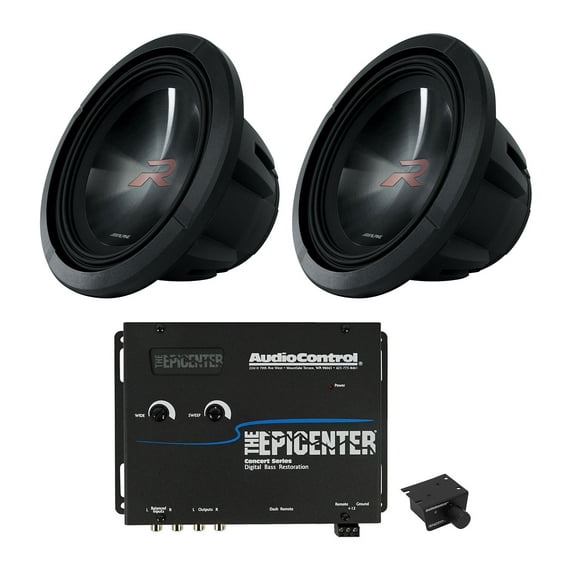

2) Alpine R2-W12D2 12" 750w RMS Car Subwoofers+AudioControl Bass Processor
Key item features
Specs
- BrandAlpine
- ModelR-W12D2
How do you want your item?
About this item
Product details
Package Includes:
(2) Alpine R-W12D2 12" 750w RMS R-Series Dual 2-Ohm Car Audio Subwoofer Sub
(1) AudioControl The Epicenter Black Digital Car Bass Processor+Remote Audio Control
What's In The Box:
One 12" Dual 2-Ohm Voice Coil Subwoofer
1 Rubber Concealing Ring (Installed)
Two 3" Jumper Cables (Each Has A Single Banana Connector On Each End)
R-Series Subwoofer Application Guide (English/ French)
Online Product Registration Information (English/ French/ Spanish)
Warranty Information (English/ French)
Owner's Manual - Click here to view
Features of R-W12D2:
Alpine R-W12D2 12" 750W RMS R-Series Dual 2-Ohm Car Audio Subwoofer
12" Subwoofer With Dual 2-Ohm Voice Coils
Kevlar Reinforced Pulp Cone With HAMR Santoprene Rubber Surround
Frequency Response: 24 Hz - 200 Hz
Power Handling: 750 Watts RMS (375 Watts Per Coil)
Peak Power Handling: 2250 Watts
Polypropylene, mica and talc dust cap
Reinforced Cone Neck and Spider Joint
Cast Aluminum Frame With Integral Shorting Sleeve
8AWG Push Terminals With VC Configuration Jumpers
2.6" High Excursion Overhung Voice Coil
127 Oz. Strontium Ferrite Segmented Magnet
Sensitivity: 84.3 dB
Product Weight: 26.15 Lbs
Enclosure Specifications:
Optimum Sealed Box Volume: 0.85 Cubic Ft.
Optimum Ported Box Volume: 1.71 Cubic Ft.
Top-Mount Depth: 6.38" inches
Cutout Diameter: 10.88" inches
What’s in the box:
Power connectors
Manual
Warranty
ACR-2 Remote
Description of The Epicenter (Black):
Adding impactful bass to your factory installed system is simple with The Epicenter® Plus. The added OEM Interface on The Epicenter Plus converts your speaker-level signals into high quality pre-amp outputs to give you More Bass, LOUDER! Plus, you get an auxiliary input for adding secondary sources (like iPods and Satellite Radio).
The high-impedance Speaker Level Inputs allow you tap off factory speaker leads for simple addition of aftermarket subwoofers to any factory audio system. AudioControl’s exclusive GTO™ Signal Sense Turn-on and corresponding 12-volt remote output provide the turn-on lead for aftermarket amplifiers. In addition to speaker-level inputs, The Epicenter Plus has line-level inputs for use with aftermarket systems.
The Epicenter Plus uses AudioControl’s famous Digital Bass Restoration to drive your subwoofers lower, grabbing the attention of every ear on the boulevard.
Features:
Patented Bass Restoration Circuitry
Speaker-Level Inputs for Integration with Factory Audio Systems
Auxiliary Input for iPod’s, MP3 players or Satellite radio tuners
GTO™ Signal Sensing Inputs for Automatic Turn-on
Bass Maximization Circuitry
12 volt trigger output
Dash mount control
PFM Subsonic Filter
Balanced Pre-amp inputs
Specifications:
Inputs
Preamp Inputs: 1 (2 channels)
Maximum Input Level: 9.5Vrms
Aux Input: 1 (2 channels)
Speaker Level Inputs: 1 (2 channels)
Maximum Speaker Level Input: 400W at 4O
Input Impedance: 20kO
Outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms
Output Impedance: 150O
Performance
Total Harmonic Distortion: 0.003%
Frequency Response: 10Hz-22kHz
Signal to Noise: 110dB
Balanced I
