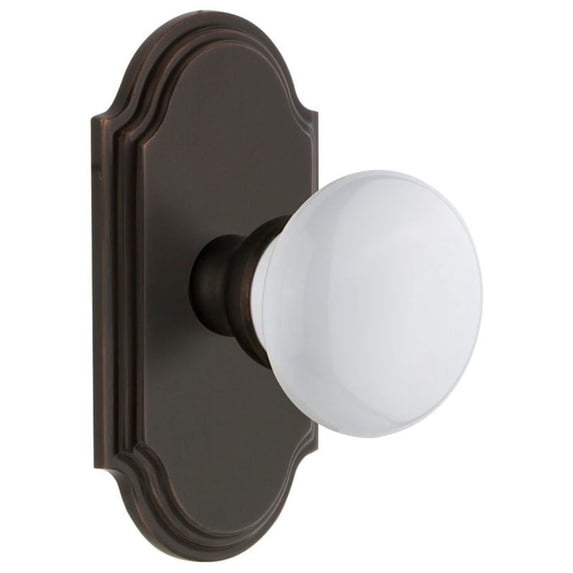

Grandeur 811172 Arc Solid Brass Rose Passage Door Knob Set - Bronze

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:

• Crafted with solid brass and porcelain
• Handing is reversible for left or right handed doors
• Easily installs on standard prepared doors
• Includes a 2-3/8" backset and square corner latch
• Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
• Does not meet criteria of the American's with Disabilities Act (ADA)
• Hand assembled in the United States

Product Technologies:

• Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.

Specifications:

• Backset: 2-3/8"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible Left or Right
• Handle Height: 2-1/4"
• Handle Width: 2-1/4"
• Handle Projection: 2-7/8"
• Trim Height: 4-3/4"
• Trim Width: 2-1/2"
• Latch Faceplate: Square Corner
• Material: Brass, Porcelain
