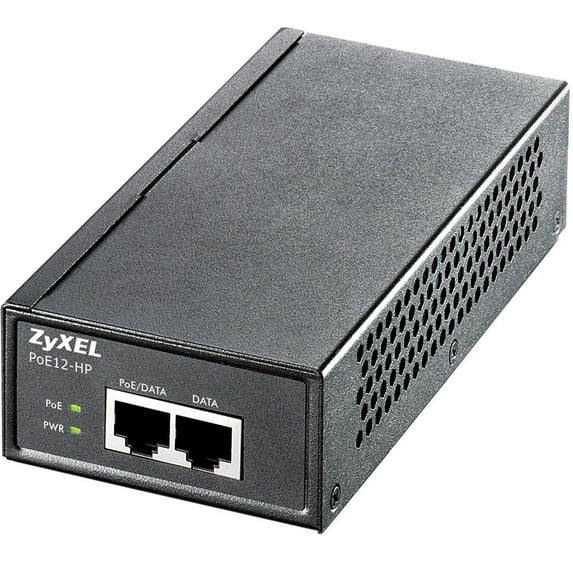

Hero image 0 of Zyxel PoE 12HP - PoE injector - AC 100-240 V - 30-watt - output connectors: 1, 0 of 2

Zyxel PoE 12HP - PoE injector - AC 100-240 V - 30-watt - output connectors: 1

(No ratings yet)

Key item features

Industry standard compliance and investment protection PoE is a standard-based technology that specifies how power is distributed along with data on standard Ethernet LAN cables. The standard specifies IEEE 802.3af providing up to 15.4 W of power per device and IEEE 802.3at providing up to 30 W per device. Complying with the IEEE 802.3af and IEEE 802.3at standards, the Zyxel PoE12-HP offers interoperability and compatibility with other standard-based PoE devices.
Trouble-free installation With PoE technology, the PoE12-HP enables users to place devices such as wireless LAN APs, IP surveillance cameras and IP phones exactly where they are needed. Since the devices are directly powered through Ethernet cables, there is no need to have separate power supplies or to have costly electrical engineers putting AC power sockets on ceilings or roof spaces.
Plug and Play?ease of use The PoE12-HP is easy to use and needs no configuration. Since only simple inbound and outbound cable plugs are required, the installation is very straightforward and can be performed by users having no electrical wiring experience without spending extra cost.
Single port PoE Injector 30W
Design that delivers high availability, scalability, and for maximum flexibility and price/performance
IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards compliant
Superior safety with overloading and short-circuit protection
Install anywhere taking advantage of PoE technology
10/100/1000BASE-T (Data)*1 1
1000/10GBASE-T 1
Ethernet IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T
PoE IEEE 802.3at Power over Ethernet
Safety EN 60950-1 EU RoHS compliant BSMI CNS14336-1
Emission (EMC) FCC Part15 (Class B) CE EMC (Class B) BSMI CNS13438
Input voltage 100 - 240 V AC, 50/60 Hz, 1.5 A max
Maximum power consumption 3 Watt (30 Watt output for client devices)
Item Dimensions (WxDxH)(mm/in.) 155 x 74 x 36/6.10 x 2.91 x 1.42
Item Weight (g/lb.) 396/0.87
Packing Dimensions (WxDxH)(mm/in.) 202 x 155 x 69/7.95 x 6.10 x 2.72
Packing Weight (g/lb.) 780/1.72
Operating Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (Non-condensing)
Storage Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (Non-condensing)

Specs

Outlets
1
Volts
AC 100-240 V
Watts
30 Watts
Brand
ZyXEL
Weight
0.87 lbs
Model
POE12HP

Current price is $65.69$1.02/ea

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

ZyXEL PoE-12 is a single-port Power over Ethernet (PoE) Injector that infuses and transmits electricity through unused pairs (4/5 and 7/8) in CAT-5 Ethernet cables, while data flows are carried by the other pairs (1/2 and 3/6). As such both power and data can be delivered to PoE devices (PD) via a single CAT-5 Ethernet cable without extra power supply.

With the PoE-12, non-PoE switches can now power IEEE802.3af compliant PoE devices through an effective single CAT-5 Ethernet cable link up to 100m in length.

In other words, users can install any IEEE 802.3af compliant PoE devices like WLAN access points or IP surveillance cameras with more freedom. Unlike traditional solutions, the PoE-12 can now take advantage of the effortless connectivity in challenging places, such as ceiling or top of wall, without laying power cables. It means that the devices are now untied from power outlets for maximum flexibility.

The PoE-12 is easy to use and needs no configuration. Since only simple inbound and outbound cable plugging is required, installation is straightforward and can be performed by users without power cabling expertise or expense.

Device Type: PoE injector - external Interfaces: 1 x Gigabit LAN - RJ-45 Compliant Standards: CSA, FCC Part 15 B, EMC, RoHS, EN 60950-1 Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 10 - 95% (non-condensing) Power Consumption Operational: 42.1 Watt Input Voltage: AC 100-240 V Frequency Required: 50/60 Hz Power Output Connectors Details: 1 x RJ-45 Max Electric Current: 1.5 A Power Capacity: 30 Watt Width: 6.1 in Depth: 2.9 in Height: 1.4 in Weight: 13.97 oz Shipping Width: 8 in Shipping Depth: 6.1 in Shipping Height: 2.7 in Shipping Weight: 1.7 lbs Dimensions (WxDxH): 6.1 in x 2.9 in x 1.4 in Weight: 13.97 oz Device Type: PoE injector - external Input Voltage: AC 100-240 V Power Capacity: 30 Watt Output connectors: 1 x RJ-45

Industry standard compliance and investment protection PoE is a standard-based technology that specifies how power is distributed along with data on standard Ethernet LAN cables. The standard specifies IEEE 802.3af providing up to 15.4 W of power per device and IEEE 802.3at providing up to 30 W per device. Complying with the IEEE 802.3af and IEEE 802.3at standards, the Zyxel PoE12-HP offers interoperability and compatibility with other standard-based PoE devices.
Trouble-free installation With PoE technology, the PoE12-HP enables users to place devices such as wireless LAN APs, IP surveillance cameras and IP phones exactly where they are needed. Since the devices are directly powered through Ethernet cables, there is no need to have separate power supplies or to have costly electrical engineers putting AC power sockets on ceilings or roof spaces.
Plug and Play?ease of use The PoE12-HP is easy to use and needs no configuration. Since only simple inbound and outbound cable plugs are required, the installation is very straightforward and can be performed by users having no electrical wiring experience without spending extra cost.
Single port PoE Injector 30W
Design that delivers high availability, scalability, and for maximum flexibility and price/performance
IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards compliant
Superior safety with overloading and short-circuit protection
Install anywhere taking advantage of PoE technology
10/100/1000BASE-T (Data)*1 1
1000/10GBASE-T 1
Ethernet IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T
PoE IEEE 802.3at Power over Ethernet
Safety EN 60950-1 EU RoHS compliant BSMI CNS14336-1
Emission (EMC) FCC Part15 (Class B) CE EMC (Class B) BSMI CNS13438
Input voltage 100 - 240 V AC, 50/60 Hz, 1.5 A max
Maximum power consumption 3 Watt (30 Watt output for client devices)
Item Dimensions (WxDxH)(mm/in.) 155 x 74 x 36/6.10 x 2.91 x 1.42
Item Weight (g/lb.) 396/0.87
Packing Dimensions (WxDxH)(mm/in.) 202 x 155 x 69/7.95 x 6.10 x 2.72
Packing Weight (g/lb.) 780/1.72
Operating Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (Non-condensing)
Storage Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (Non-condensing)

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Outlets

Volts

AC 100-240 V

Watts

30 Watts

Brand

ZyXEL

Warranty

Warranty information

1 YEAR

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
